Bell Out Door LL1200S LED Swivel Floodlight, 1200 Lumens, Gray
- MPN: LL1200S
- UPC: 050169994771
- PPN: HBL-LL1200S
- UNSPSC: 39111611
CAD
$146.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

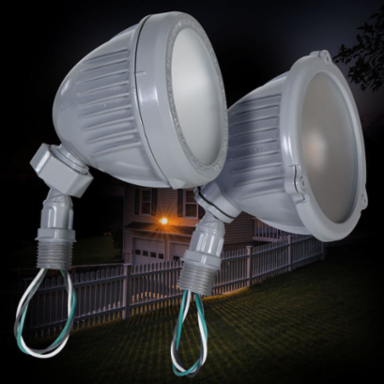

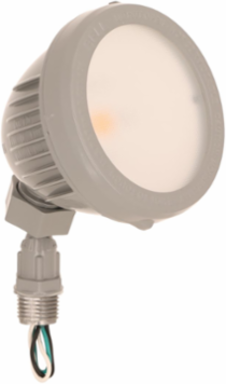

LED Swivel Floodlight, 1200 Lumens, Gray
Features
- 85% less energy consumption compared to incandescent bulb with similar light
- Uses only 13W
- 1200 Lumens (equivalent to 75W incandescent) of 3000k warm white light
- Rugged die-cast aluminum heads
- 120/277 VAC 50/60 Hz
- Unique locking swivel joint for easy light adjustment
- Long life - up to 50,000 hours
- 6" lead wires
- Tempered glass lens
- Tool-free mounting to Bell boxes, covers & cluster covers
- DLC Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Color Temperature Description
- Warm White

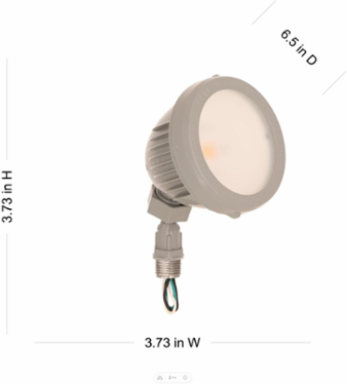

- Height
- 3.73 in
- Product Type
- Weatherproof Lighting
- Color
- Gray
- Standard
- cULus Listed
- Weight
- .800 lb.
- Color Temperature
- 3000 K
- Material type
- Metallic
- Wattage
- 12.6 W
- Description - Invoice
- LED SWIVEL FLOODLIGHT 1200 LUMEN GRAY
- Harmonization Code
- 9405426000
- Sub Class Code
- D17D170
- NEC
- Compliant
- Construction
- Metallic
- Material
- Die-cast aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.05 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 4
- Package Height
- 5.625 in
- Package Weight
- 1.013 lb.
- Pallet - GTIN - Package
- 70050169994770
- Pallet Length
- 43.300 in
- Pallet Width
- 43.300 in
ChannelSightWidgetId705
Depth6.5 in
Mounting Method1/2" NPT Threaded
Standard Package1
Fixture TypeArchitectural;Flood;Swivel
TypeLighting
Width3.73 in
Frequency Rating60 Hz
Nema Rating3R
Class CodeD17
Freight Class Code06202000
Image Actual Or RepresentativeA
Lumens Per Watt97.8
Weather ResistantYes
Light SourceLED
Proposition 65 Warning RequiredYes
BOX SIZE6.125x9.375x8.125 (in)
Carton - Number of Sub Packs4
Carton - SCC-14 Next Lower Level Sub Pack00050169994771
Item Package TypeRetail Box
Package Length2.25 in
Package Width2.25 in
Pallet Height36.125 in
Pallet Weight531.000 lb.
NAICS Code3359326103
Certifications
- Certified Listed
- cULus Listed
EU RoHS IndicatorNo
