Bell Out Door LL1200W LED Swivel Floodlight, 1200 Lumens, White
- MPN: LL1200W
- UPC: 050169994788
- PPN: HBL-LL1200W
- UNSPSC: 39111611
CAD
$146.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

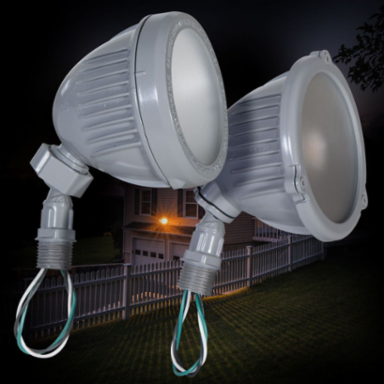

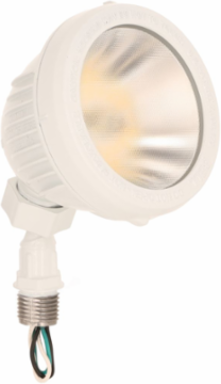

LED Swivel Floodlight, 1200 Lumens, White
Features
- 85% less energy consumption compared to incandescent bulb with similar light
- Uses only 13W
- 1200 Lumens (equivalent to 75W incandescent) of 3000k warm white light
- Rugged die-cast aluminum heads
- 120/277 VAC 50/60 Hz
- Unique locking swivel joint for easy light adjustment
- Long life - up to 50,000 hours
- 6" lead wires
- Tempered glass lens
- Tool-free mounting to Bell boxes, covers & cluster covers
- DLC Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China

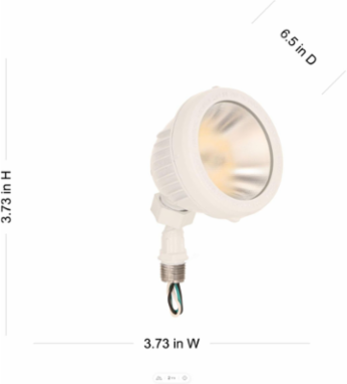

- Depth
- 6.5 in
- Mounting Method
- 1/2" NPT Threaded
- Standard Package
- 1
- Fixture Type
- Architectural;Flood;Swivel
- Type
- Lighting
- Width
- 3.73 in
- Frequency Rating
- 60 Hz
- Nema Rating
- 3R
- Class Code
- D17
- Freight Class Code
- 06202000
- Image Actual Or Representative
- A
- Lumens Per Watt
- 97.8
- Weather Resistant
- Yes
- Light Source
- LED
- Proposition 65 Warning Required
- Yes
- BOX SIZE
- 6.125x9.375x8.125 (in)
- Carton - Number of Sub Packs
- 4
- Carton - SCC-14 Next Lower Level Sub Pack
- 00050169994788
- Item Package Type
- Retail Box
- Package Length
- 2.25 in
- Package Width
- 2.25 in
- Pallet - SCC-14 Next Lower Level Sub Pack
- 50050169994783
- Pallet Length
- 43.300 in
- Pallet Width
- 43.300 in
Color Temperature DescriptionWarm White
Height3.73 in
Product TypeWeatherproof Lighting
ColorWhite
StandardcULus Listed
Weight.800 lb.
Color Temperature3000 K
Material typeMetallic
Wattage12.6 W
Description - InvoiceLED SWIVEL FLOODLIGHT 1200 LUMEN WHITE
Harmonization Code9405416000
Sub Class CodeD17D170
NECCompliant
ConstructionMetallic
MaterialDie-cast aluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.05 lb.
Carton - Pack DescriptionCarton
Carton - Total Units4
Package Height5.625 in
Package Weight1.013 lb.
Pallet - GTIN - Package70050169994787
Pallet Height36.125 in
Pallet Weight531.000 lb.
NAICS Code3359326103
Certifications
- Certified Listed
- cULus Listed
EU RoHS IndicatorNo
