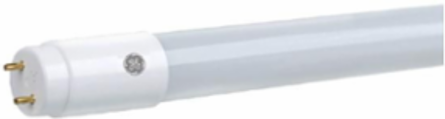

Current Lighting Solutions 93138430 LED Type AB T8 Glass Tubes
- MPN: 93138430
- UPC: 662049500875
- PPN: GEL-93138430
- UNSPSC: N/A
CAD
$15.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
LED Type AB T8 Glass Tubes
Features
- Can be used as either Type A (ballast compatible) or Type B (ballast bypass)
- Re-wiring required for Type B
- 50,000 hr life with limited 5 year warranty
- Current's Type A+B Tubes offer the flexibility to be used in either Type A (ballast driven) or Type B (ballast bypass) applications. A Type A+B Tube can run off a ballast initially, and can run off mains voltage should the ballast fail, or if it is found to be incompatible. To use Type A+B lamps as Type B, the fixture must be re-wired.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Bulb Base Type
- G13
- CCT (K)
- 5000 K
- CRI
- 80 CRI
- Dimmable
- No
- Family Optics/Distribution Offering
- Omni-directional lamp
- Length Metric
- 1219.2
- Lumen Maintenance Rating
- L70 @ 50,000 hours
- Lumens
- 1,950 lm
- Operating Life (Hrs)
- 50,000 hr
- Safety Certification
- cULus
- Suggested Traditional Replacement
- LFL;
- UL Type A, B, C
- Type AB
- Warranty
- 5 year limited warranty
Base TypeG13
Bulb ShapeT8
Connect Family NameLED Type AB T8 Glass Tubes
Diameter1 in
Efficacy (LPW)150 LPW
CategoryLED Tubes
Location RatingDamp
Lumen Range1,950 lm
MOL (In)48 in
Operating Temperature-20 to 45 °C
SAP Material Number93138430
Technology TypeLED
Voltage (V)120-277 V
Wattage13 W
