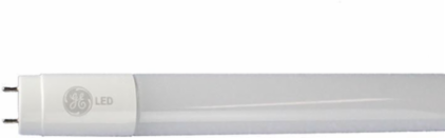

Current Lighting Solutions 93123316G LED Type B Linear Plastic/Coated Tubes
- MPN: 93123316G
- UPC: 043168517096
- PPN: GEL-93123316G
- UNSPSC: 39112102
CAD
$12.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
LED Type B Linear Plastic/Coated Tubes
Features
- Current's Ballast Bypass LED Tubes (UL Type B) eliminate compatibility issues by wiring the existing fixture to bypass the ballast, which also reduces energy use
- Current offers Type B Tubes in Glass, Plastic as well as Plastic Coated Glass (PET) and are available in T5, T8 and U-Tubes offerings
- Our XL T8 Type B Double-Ended LED Tubes offer 40% longer life and are 35% more energy efficient vs standard Type B double-ended LED Tubes
- Safety is at the forefront of our Type B double-ended Tubes and is delivered in a three pronged approach: An internal safety switch provides protection for the installer, internal misapplication circuit provides protection if lamp is placed into ballasted fixture and In-line fuse kit protects the installer if LFL is reinstalled in the future (optional, sold separately)
- UL Type B Tubes have a Rated Life of 50,000 - 70,000 L70 (Hrs) and a 5 - 7 Year Limited Warranty
- Key Certifications: DLC, UL and NSF
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Bulb Base Type
- G13
- CCT (K)
- 4000 K
- CRI
- 80 CRI
- Dimmable
- No
- Category
- LED Tubes
- Location Rating
- Damp
- Lumen Range
- 1,750 lm
- MOL (In)
- 48 in
- Operating Temperature
- -15 to 30 °C
- SAP Material Number
- 93123316G
- Technology Type
- LED
- Voltage (V)
- 120-277 V
- Wattage
- 14 W
- NSF Rated
- Yes
Base TypeG13
Bulb ShapeT8
Connect Family NameLED Type B Linear Plastic/Coated Tubes
Diameter1 in
Efficacy (LPW)125 LPW
Length Metric1219.2
Lumen Maintenance RatingL70 @ 50,000 hours
Lumens1,750 lm
Operating Life (Hrs)50,000 hr
Safety CertificationcULus
Suggested Traditional ReplacementLFL;
UL Type A, B, CType B
Warranty5 year limited warranty
ARRA CompliantContact Manufacturer
