Current Lighting Solutions 93301783 LED Type B Double Ended T8 Glass Tubes
- MPN: 93301783
- UPC: 662049524192
- PPN: GEL-93301783
- UNSPSC: 39112102
CAD
$10.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

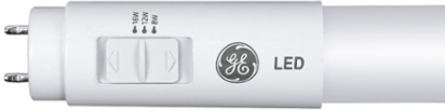

LED Type B Double Ended T8 Glass Tubes
Features
- Direct wire to bypass the ballast to reduce energy use and eliminate ballast compatibility
- Safety First: 1) Internal safety switch (protects installer), 2) Internal misapplication circuit (protects end-user), 3) Optional In-line fuse kit (protects future installer)
- Complete offering for everyday applications and additional premium performance/long life options available
- 70,000 hr life with 7 year warranty
- LumenChoice®: Three wattage levels that can be adjusted with built-in switch, no tool required. One lamp can replace many, greatly reducing inventory
- Optimize light levels and power consumption instantly for each application, maximizing energy savings immediately
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Bulb Base Type
- G13
- CCT (K)
- 4000 K
- CRI
- 80 CRI
- Dimmable
- No
- Category
- LED Tubes
- Location Rating
- Damp
- Lumen Range
- 1,100 lm/1,600 lm/2,000 lm
- MOL (In)
- 48 in
- Operating Temperature
- -20 to 45 °C
- SAP Material Number
- 93301783
- Technology Type
- LED
- Voltage (V)
- 120-277 V
- Wattage
- 8 W/12 W/16 W
Base TypeG13
Bulb ShapeT8
Connect Family NameLED Type B Double Ended T8 Glass Tubes
Diameter1 in
Efficacy (LPW)137 LPW/133 LPW/125 LPW
Length Metric1219.2
Lumen Maintenance RatingL70 @ 70,000 hours
Lumens1,100 lm/1,600 lm/2,000 lm
Operating Life (Hrs)70,000 hr
Safety CertificationcULus
Suggested Traditional ReplacementLFL;
UL Type A, B, CType B
Warranty7 year limited warranty
ARRA CompliantContact Manufacturer
