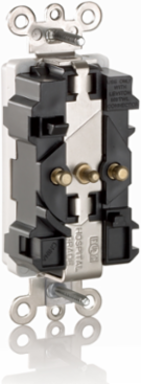

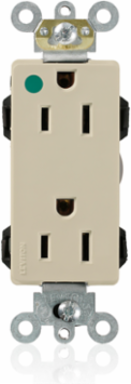

Leviton M1626-HGI 15 Amp Duplex Receptacle, Hospital Grade, 125V, Self-Grounding

MPN: M1626-HGI
UPC: 078477364185
PPN: LEV-M1626-HGI

$40.71

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

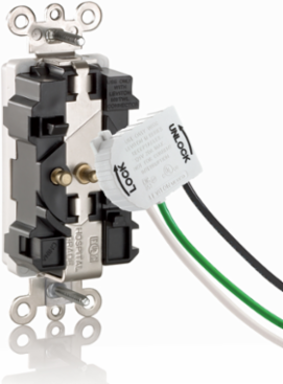

Lev-Lok Decora Plus Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Smooth Face, 15 Amp, 125 Volt, Modular, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Ivory Mating Lev-Lok Wiring Module Required for Use Lev-Lok Savings Calculator

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

RoHS Compliant	False

Standards and Certifications

ANSI	C-73
NOM Certified	057
cULus	Listed

NEMA	WD-1 & WD-6
Warranty	10-Year Limited

Material Specifications

Base Material	Nylon
Ground Clips	Nickel-Plated Brass
Locking Pins	Solid Brass
Mounting Strap	Single Piece Nickel-Plated Brass with integral ground contact

Cover Material	Nylon
Line Contacts	0.040” Thick Solid Brass
Mounting Screws	Triple Combination Head, Steel

Mechanical Specifications

Product ID	Ratings are permanently marked on device

Termination	Modular

Product Features

Brand	Lev-Lok Decora Plus
Device Type	Duplex Receptacle Outlet
Grade	Extra Heavy-Duty Hospital Grade

Color	Ivory
Feature 4	Smooth Face

Environmental Specifications

Flammability	Rated V-2 per UL94

Operating Temperature	-40°C to 60°C

Electrical Specifications

Amperage	15 A
Dielectric Voltage	Withstands 2000V per UL498
Maximum Working Voltage	125V as rated
Temperature Rise	Max 30C after 250 cycles OL at 200 percent rated current
Wire	3
