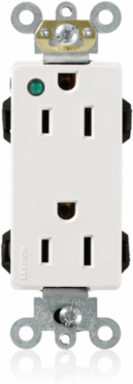

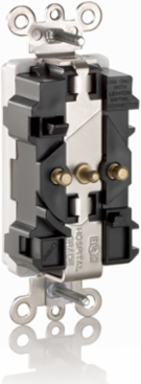

Leviton M1626-PLW 15 Amp Extra Heavy-Duty Hospital Grade Duplex Receptacle, 125V, Self-Grounding
- MPN: M1626-PLW
- UPC: 078477442975
- PPN: LEV-M1626-PLW
CAD
$43.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

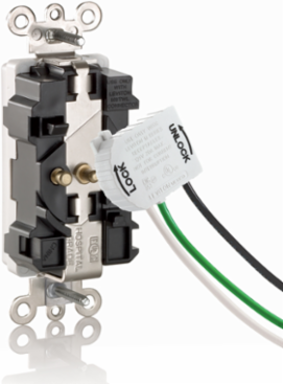

Lev-Lok Decora Plus Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Power Indication, Smooth Face, 15 Amp, 125 Volt, Modular, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White Mating Lev-Lok Wiring Module Required for Use Lev-Lok Savings Calculator
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NOM Certified
- 057
- cULus
- Listed
NEMAWD-1 & WD-6
Warranty10-Year Limited
Material Specifications
- Base Material
- Nylon
- Ground Clips
- Nickel-Plated Brass
- Locking Pins
- Solid Brass
- Mounting Strap
- Single Piece Nickel-Plated Brass with integral ground contact
Cover MaterialNylon
Line Contacts0.040” Thick Solid Brass
Mounting ScrewsTriple Combination Head, Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
TerminationModular
Product Features
- Brand
- Lev-Lok Decora Plus
- Device Type
- Duplex Receptacle Outlet
- Feature 4
- Smooth Face
ColorWhite
Feature 3Power Indication
GradeExtra Heavy-Duty Hospital Grade
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Maximum Working Voltage
- 125V as rated
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Current InterruptingCertified for current interrupting at full rated current
GroundingSelf-Grounding
Pole2
Voltage125 VAC
AC Horsepower Ratings
- Horsepower Rating
- 1/2 HP
