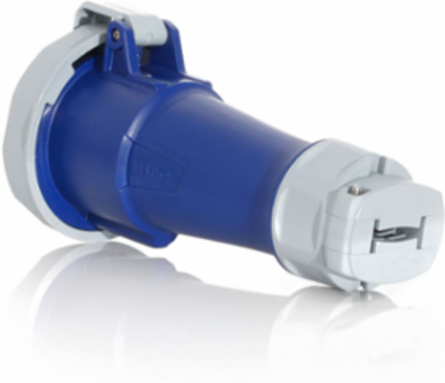

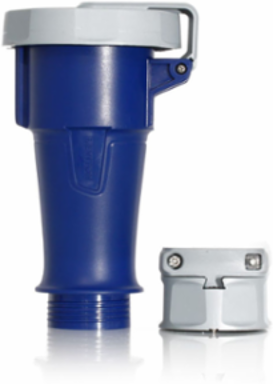

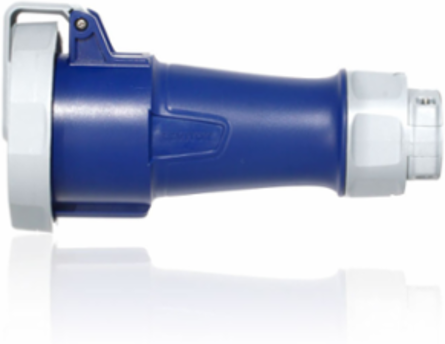

Leviton 520C9WLEV LEV Series IEC Pin & Sleeve Connector 20A 120/208V 4P 5W IP66/67/68/IP69K Blue
- MPN: 520C9WLEV
- UPC: 078477676035
- PPN: LEV-520C9WLEV
CAD
$352.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
16/20 Amp, 120/208 Volt 3-Phase, 4P, 5W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Connector, Industrial Grade, IP66/67/68/IP69K, Watertight - BLUE
Features
- LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and outlast the competition:
- Improved speed of assembly with threaded housings that have less screws for reduced installation time
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68
- Best in class 5-year limited warranty!
- Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007. LEV Series Savings Calculator
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- CE
- CE certification
- IEC Rating
- 60309-1, 60309-2
- RoHS
- RoHS compliant components
CSACSA C22.2 No 182.1-13 (Harmonized with UL 1682)
NOMNOM –ANCE standards
ULUL 1686 C2, UL 1682, UL Classified to IEC 60309-1, 60309-2
Material Specifications
- Assembly Screws
- 303 Stainless Steel
- Grommet/Gasket
- NBR/Buna N
- Terminal Screws
- 303 Stainless Steel
Contact CarrierGlass filled Nylon
HousingImpact Modified Nylon
Mechanical Specifications
- Cable Clamp Screw Torque
- 10 in-lb
- Contact Carrier Assembly Screw Torque
- 8 in-lb
- Hardware Head Type
- Hex style socket screws for terminals, combination screws for all others
- Screw Terminal Torque
- 20 in-lb
Conductor Range#14 AWG to #10 AWG
Crush Test250 lbs for 1 min after -25°C for 6 hrs
ImpactDrop from 30" 8 times after conditioning to -25°C, for 6 hours; Drop from 72" after conditioning to -35°C, for 6 hours
Product Features

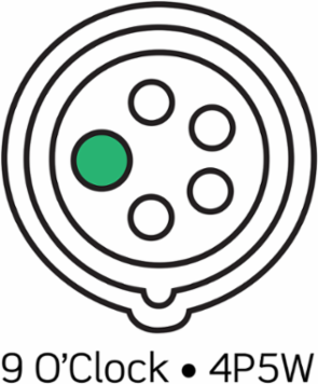

- Clock Position
- 9 o'clock
- Configuration
- North American
- Product Markings
- Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label. IEC 60309-1, -2 Dual Ratings on separate label.
ColorBlue
Device TypeConnector
SeriesLEV Series
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Corrosion Resistance
- Salt fog tested
- IP Rating
- IP66, IP67, IP68, IP69K
- NSF
- 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
FlammabilityRated V-0 (Contact Carrier), HB or better (Housing) per UL94
NEMA Enclosure Type3R, 4X, 6P and 12
UV ResistanceUV stabilized F1 rated housings
Electrical Specifications
- Amperage
- 16/20 A
- Dielectric Voltage
- 3000V for 1 min.
- Horsepower Rating
- 2 HP
- Overload UL20 Test
- 50 cycles
- Pole
- 4
- Temperature Rise
- Max 30°C rise at full rated current (after overload)
- Wire
- 5
Current InterruptingCertified for current interrupting at full-rated current and voltage
Endurance5000 cycles rated V and I load, zero cycles no-load (20A)
Max. Voltage600V
Phase3-Phase
SCCR200kA
Voltage120/208 VAC
