Leviton 560C6WLEV LEV Series IEC Pin & Sleeve Connector
- MPN: 560C6WLEV
- UPC: 078477025154
- PPN: LEV-560C6WLEV
CAD
$330.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

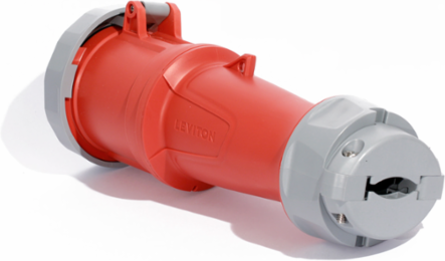

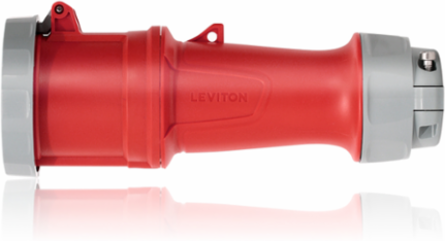

60/63 Amp, 200/346 - 240/415 Volt 3-Phase, 4P, 5W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Connector, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Red
Features
- LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:
- Improved speed of assembly with threaded housings that have less screws for reduced installation time
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68
- Best in class 5-year limited warranty! Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007. LEV Series Savings Calculator
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| CE | CE certification |
|---|---|
| IEC Rating | 60309-1, 60309-2 |
| RoHS | RoHS compliant components |
| CSA | CSA C22.2 No 182.1-13 (Harmonized with UL 1682) |
|---|---|
| NOM | NOM –ANCE standards |
| UL | UL 1686 C2, UL 1682 |
Material Specifications
| Assembly Screws | 303 Stainless Steel |
|---|---|
| Grommet/Gasket | NBR/Buna N |
| Terminal Screws | 303 Stainless Steel |
| Contact Carrier | Glass filled Nylon |
|---|---|
| Housing | Impact Modified Nylon |
Mechanical Specifications
| Amperage | 60 A |
|---|---|
| Conductor Range | #8 AWG to #2 AWG |
| Current Interrupting | Certified for current interrupting at full-rated current and voltage |
| Endurance | 1000 cycles rated V and I load, 1000 cycles no-load (60A) |
| Horsepower Rating | 15 HP |
| Max. Voltage | 600V |
| Phase | 3-Phase |
| SCCR | 200kA |
| Temperature Rise | Max 30°C rise at full rated current (after overload) |
| Wire | 5 |
| Cable Clamp Screw Torque | 10 in-lb |
|---|---|
| Crush Test | 250 lbs for 1 min after -25°C for 6 hrs |
| Dielectric Voltage | 3000V for 1 min. |
| Hardware Head Type | Hex style socket screws for terminals, combination screws for all others |
| Impact | Drop from 30" 8 times after conditioning to -25°C, for 6 hours Drop from 72" after conditioning to -35°C, for 6 hours |
| Overload UL20 Test | 50 cycles |
| Pole | 4 |
| Screw Terminal Torque | 50 in-lb |
| Voltage | 277/480 VAC |
Product Features

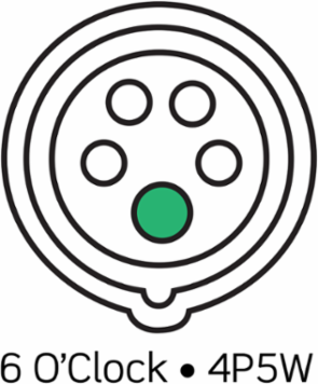

| Clock Position | 6 o'clock |
|---|---|
| Configuration | North American |
| Product Markings | Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP on label |
| Color | Red |
|---|---|
| Device Type | Connector |
| Series | LEV Series |
Warranty
| Warranty | 5-Year Limited |
|---|
Environmental Specifications
| Corrosion Resistance | Salt fog tested |
|---|---|
| IP Rating | IP66, IP67, IP68, IP69K |
| UV Resistance | UV stabilized F1 rated housings |
| Flammability | Rated V-0 (Contact Carrier), HB or better (Housing) per UL94 |
|---|---|
| NSF | 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment |
Electrical Specifications
| Amperage | 60 A / 63 A |
|---|---|
| Dielectric Voltage | 3000V for 1 min. |
| Horsepower Rating | 10 HP |
| Overload UL20 Test | 50 cycles |
| Pole | 4 |
| Temperature Rise | Max 30°C rise at full rated current (after overload) |
| Wire | 5 |
| Current Interrupting | Certified for current interrupting at full-rated current and voltage |
|---|---|
| Endurance | 1000 cycles rated V and I load, 1000 cycles no-load (60A) |
| Max. Voltage | 600V |
| Phase | 3-Phase |
| SCCR | 200kA |
| Voltage | 200/346 - 240/415 VAC |
