Leviton 330C4WLEV LEV Series 30 Amp 125 Volt Industrial IEC Pin & Sleeve Connector, IP66/IP67/IP68/IP69K, Watertight
- MPN: 330C4WLEV
- UPC: 078477921609
- PPN: LEV-330C4WLEV
CAD
$462.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

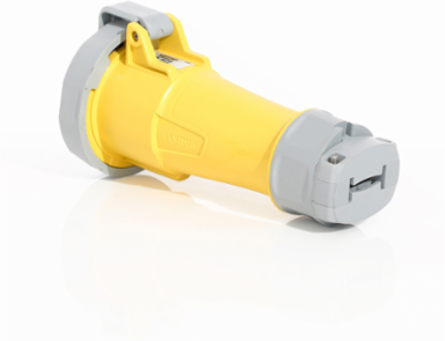

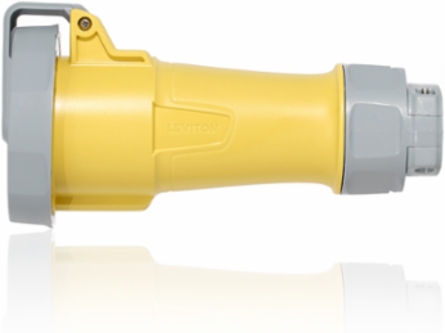

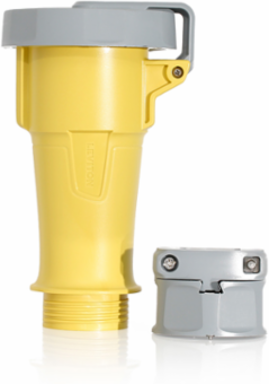

30 Amp, 125 Volt, 2P, 3W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Connector, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Yellow
Features
- LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and outlast the competition:
- Improved speed of assembly with threaded housings that have less screws for reduced installation time
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68
- Best in class 5-year limited warranty!
- Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007. LEV Series Savings Calculator
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- CE
- CE certification
- IEC Rating
- 60309-1, 60309-2
- RoHS
- RoHS compliant components
CSACSA C22.2 No 182.1-13 (Harmonized with UL 1682)
NOMNOM –ANCE standards
ULUL 1686 C2, UL 1682
Material Specifications
- Assembly Screws
- 303 Stainless Steel
- Grommet/Gasket
- NBR/Buna N
- Terminal Screws
- 303 Stainless Steel
Contact CarrierGlass filled Nylon
HousingImpact Modified Nylon
Mechanical Specifications
- Amperage
- 30 A
- Crush Test
- 250 lbs for 1 min after -25°C for 6 hrs
- Dielectric Voltage
- 3000V for 1 min.
- Hardware Head Type
- Hex style socket screws for terminals, combination screws for all others
- Max. Voltage
- 600V
- Pole
- 2
- Temperature Rise
- Max 30°C rise at full rated current (after overload)
- Wire
- 3
Conductor Range#12 AWG to #8 AWG
Current InterruptingCertified for current interrupting at full-rated current and voltage
Endurance1000 cycles rated V and I load, 1000 cycles no-load (30A)
ImpactDrop from 30" 8 times after conditioning to -25°C, for 6 hoursDrop from 72" after conditioning to -35°C, for 6 hours
Overload UL20 Test50 cycles
SCCR200kA
Voltage125 VAC
Product Features
- Clock Position

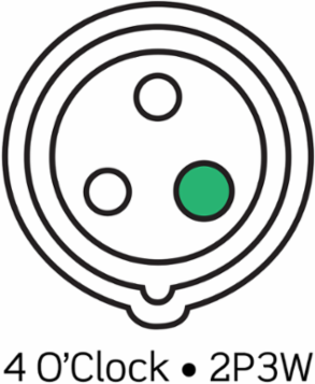

- 4 o'clock
- Configuration
- North American
- Product Markings
- Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label
ColorYellow
Device TypeConnector
SeriesLEV Series
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Corrosion Resistance
- Salt fog tested
- IP Rating
- IP66, IP67, IP68, IP69K
- UV Resistance
- UV stabilized F1 rated housings
FlammabilityRated V-0 (Contact Carrier), HB or better (Housing) per UL94
NSF14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
Electrical Specifications
- Screw Terminal Torque
- 20 in-lb
