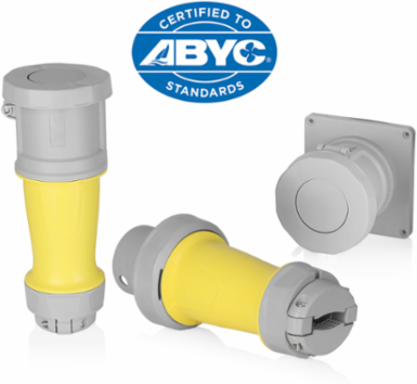

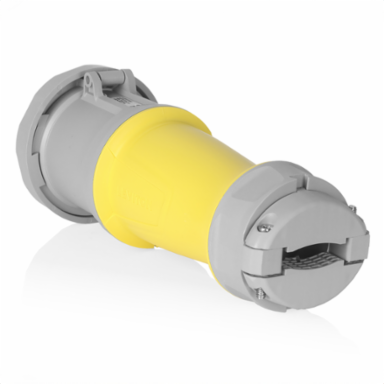

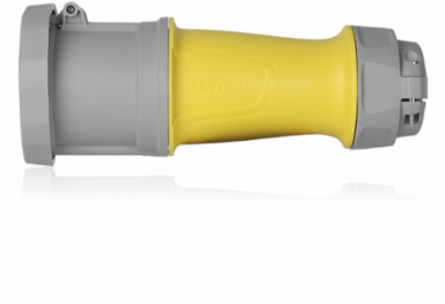

Leviton M5100C7WLEV LEV Series IEC Pin & Sleeve Connector, Marine Grade
- MPN: M5100C7WLEV
- UPC: 078477016015
- PPN: LEV-M5100C7WLEV
CAD
$1034.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Marine Grade 100 Amp, 277/480 Volt 3-Phase, 4P, 5W, North American Pin & Sleeve Connector, ABYC Certified, IEC 60309 Industrial Grade, IP66/67/68, & IP69K Watertight - Yellow
Features
- Industry-exclusive - the only manufacturer of ABYC certified Pin & Sleeve devices in the market

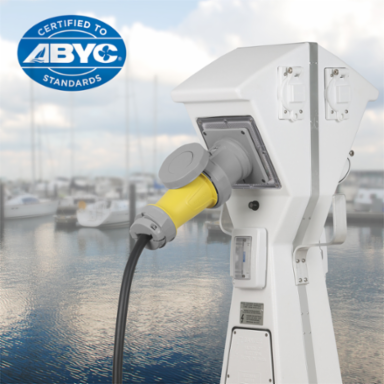

- Marine grade - withstands harsh, corrosive marine environments
- Superior watertight ratings - including IP68 for long-term submersion
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ABYC Certified
- Yes
- CSA
- CSA C22.2 No 182.1-13 (Harmonized with UL 1682)
- RoHS
- RoHS compliant components
CECE certification
IEC Rating60309-1, 60309-2
ULUL 1686 C2, UL 1682
Material Specifications
- Assembly Screws
- 303 Stainless Steel
- Grommet/Gasket
- Buna-N
- Terminal Screws
- 303 Stainless Steel
Contact CarrierGlass filled Nylon
HousingImpact Modified Nylon
Mechanical Specifications
- Cable Clamp Screw Torque
- 15 in-lb
- Crush Test
- 250 lbs for 1 min after -25°C for 6 hrs
- Impact
- Drop from 30" 8 times after conditioning to -25°C, for 6 hoursDrop from 72" after conditioning to -35°C, for 6 hours
Conductor Range#6 AWG to #1AWG
Hardware Head TypeHex style socket screws for terminals, combination screws for all others
Screw Terminal Torque50 in-lb
Product Features

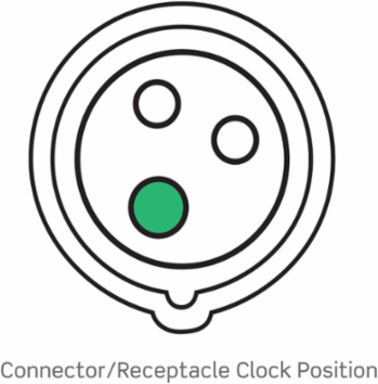

- Clock Position
- 7 o'clock
- Configuration
- North American
- Grade
- Marine
- Series
- LEV Series
ColorYellow
Device TypeConnector
Product MarkingsBrand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP on label
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Corrosion Resistance
- Salt fog tested
- IP Rating
- IP66, IP67, IP68, IP69K
- Operating Temperature
- -35C to +66C
FlammabilityRated V-0 (Contact Carrier), HB or better (Housing) per UL94
NEMA Enclosure Type3R, 4X, 6P and 12
UV ResistanceUV stabilized F1 rated housings
Electrical Specifications
- Amperage
- 100 A
- Dielectric Voltage
- 3000V for 1 min.
- Horsepower Rating
- 20 HP
- Overload UL20 Test
- 50 cycles
- Pole
- 4
- Temperature Rise
- Max 30°C rise at full rated current (after overload)
- Wire
- 5
Current InterruptingCertified for current interrupting at full-rated current and voltage
Endurance250 cycles rated V and I load, 250 cycles no-load (100A)
Max. Voltage600V
Phase3-Phase
SCCR200kA
Voltage277/480 VAC
