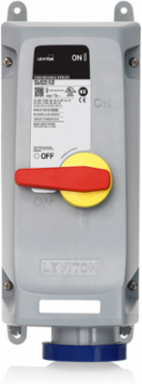

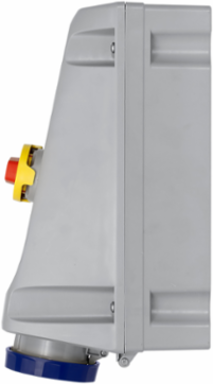

Leviton 360MF6WLEV 60 Amp IEC Pin & Sleeve Mechanical Interlock, IP66/IP67/IP68/IP69K, 240 Volt
- MPN: 360MF6WLEV
- UPC: 078477251515
- PPN: LEV-360MF6WLEV
CAD
$3304.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

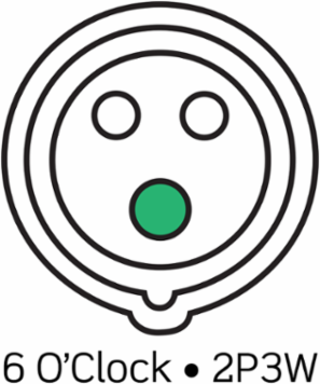

60 Amp, 240 Volt, 2P, 3W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Mechanical Interlock, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight, Fused - Blue
Features
- LEV Series IEC Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:

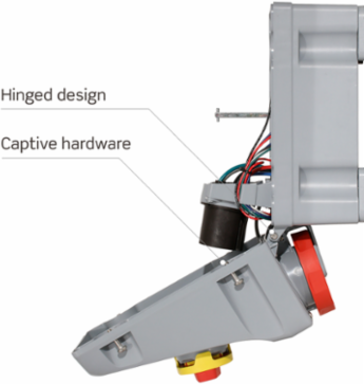

- Bottom hinged cover design makes installation and maintenance quicker and easier

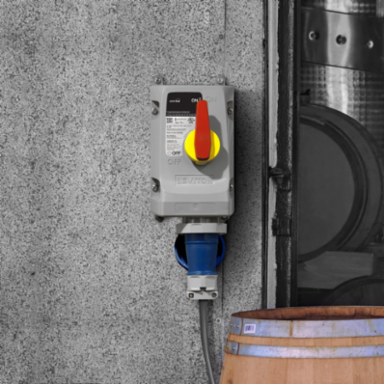

- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
- NSF certified sanitary design trusted for use in food & beverage facilities LEV Series Savings Calculator
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Material Specifications
| Contact Material | Nickel-Plated copper alloy |
|---|---|
| Handle Material | PBT+PC with TPE Overmold |
| Housing Screws | 303 Stainless Steel |
| Gasket Material | Chloroprene |
|---|---|
| Housing Material | PBT+PC |
Mechanical Specifications
| Cold Impact | 5 ft-lb impact at -31°F for 3 hrs per UL746C |
|---|---|
| Mold Stress Relief | 70°C for 7 hours without deformation |
| Crush Test | 100 lbs |
|---|
Product Features
| Color | Blue |
|---|---|
| Device Type | Fused Mechanical Interlock |
| Configuration | North American |
|---|---|
| Series | LEV Series |
Warranty
| Warranty | 5-Year Limited |
|---|
Electrical Specifications
| Amperage | 60 A |
|---|---|
| Dielectric Voltage | 2200V for 1 minute |
| Horsepower Rating | 7.5 HP |
| SCCR | 200kA |
| Wire | 3 |
| Current Interrupting | Certified for current interrupting at full-rated current and voltage |
|---|---|
| Endurance | 6,000 cycles under load |
| Pole | 2 |
| Voltage | 240 VAC |

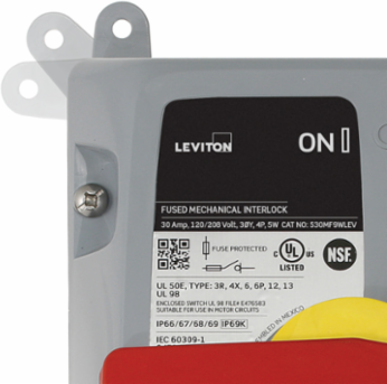

Standards & Certifications
| CE Marking | CE Certification |
|---|---|
| IEC Rating | IEC 60309-1, 60309-2, 60309-4 |
| CSA | C22.2 No 94.1-07 |
|---|---|
| UL | UL231, UL1682, UL1686, UL50, UL50E, UL60947-4-1, UL60947-1, UL746 |
Environmental Ratings
| Flammability | Rated V-0 per UL 94 |
|---|---|
| IP Rating | IP66, IP67, IP68, IP69K |
| NSF | 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment |
| UV Resistance | UV stabilized F1 rated enclosure |
| Gasket Aging | 70°C for 168 hr per UL50E |
|---|---|
| NEMA Rating | 3R, 4X, 12 |
| Operating Temperature | -40°C to 75°C |
