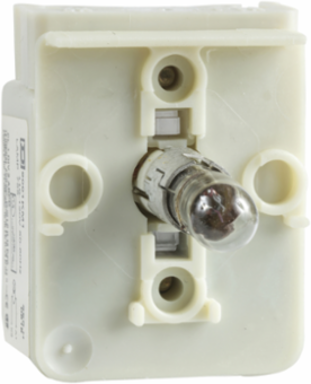

Schneider Electric 9001KM35 Harmony Light Block 30mm, Incandescent Bulb, 24V AC/DC, IP20

MPN: 9001KM35
UPC: 785901726524
PPN: SCH-9001KM35
UNSPSC: 39121534

$110.88

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This light blocks is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is supplied with 12V AC/DC via integral resistance and includes a BA 9s 6 V bulb incandescent. It is compatible with pilot lights and illuminated pushbuttons of Harmony 9001K and Harmony 9001SK ranges. It weighs 50g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Features

Improved security thanks to finger-safe contact blocks and light modules
Robustness to withstand the harshest environments
Easy, secure mounting system
Automatic self-grounding operators without additional wiring
A large metal set of accessories to customize your product
Single screw Contact Block Fastening
Wide range of operating temperature from -25°C to 70°C

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Weight	63.503 g

Physical Attributes

Size	30 mm

Complementary Attributes

Us Rated Supply Voltage	24...28 V24 V AC/DC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Light Block Supply	full voltage, direct via integral resistance
Certificate Agency	NEMA, UL 508
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.13950907019063657
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.3 kg CO2 eq., 0.34655814091216103
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	9001K
Electrical Shock Protection Class	class II conforming to IEC 61140
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Shock Resistance	50 gn IEC 60068-2-27
Sustainable Packaging	Yes
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Database Version	2024-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Range Of Product	Harmony 9001K, Harmony 9001SK
Carbon Footprint Of The Distribution Phase A4	0.034351024429102234, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.00046864580439334345, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-08-10
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Bulb Base	BA 9s
Device Short Name	9001K
Light Source	incandescent bulb
Product Or Component Type	light block
Returnability	Yes
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	0.5 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Customs Code	8531809026
Functional Unit Description	This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
Functional Unit Unit	unit
Recyclability Potential In %	49

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	0.5208868813362932
Environmental Disclosure	ENVPEP2503027EN
Ip Degree Of Protection	IP10 IEC 60529
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-03-26
Psr Version	PSR-0005-ed3-2023 06 06
