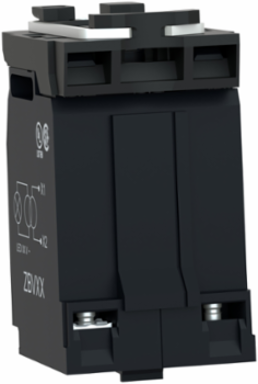

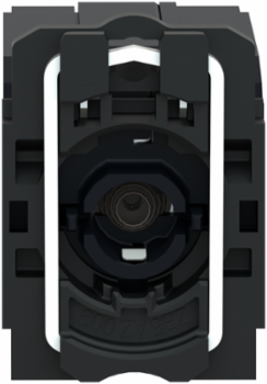

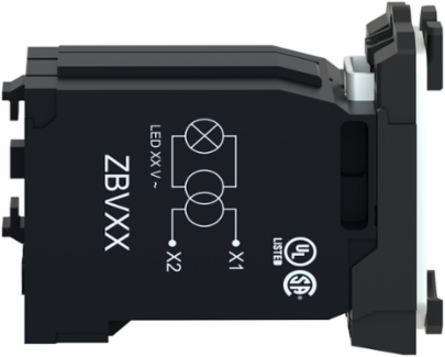

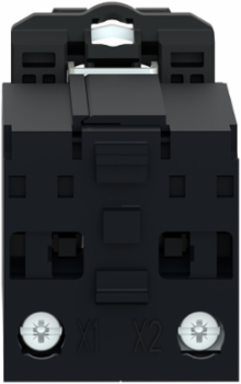

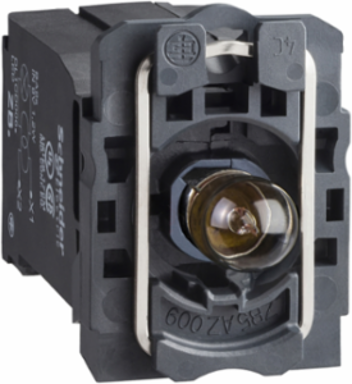

Schneider Electric ZB5AV8 Harmony XB5 Light Block with BA9s Bulb, 440-480V AC, Front Mounting, 0.099kg
- MPN: ZB5AV8
- PPN: SCH-ZB5AV8
CAD
$104.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Physical Attributes

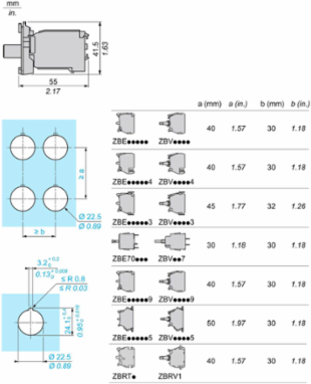

- Cad Overall Depth
- 55 mm
- Cad Overall Width
- 30 mm
Cad Overall Height42 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Light Source
- incandescent, incandescent
- Certificate Agency
- CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
- Terminals Description Iso N°1
- (X1-X2)PL, (X1-X2)PL
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.1648065278
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.7 kg CO2 eq., 0.72485
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Bulb Base
- BA 9s
- Device Short Name
- ZB5
- Fixing Collar Material
- plastic
- Mounting Of Block
- front mounting
- Product Or Component Type
- complete body/light block assembly
- Range Of Product
- Harmony XB5
- Sale Per Indivisible Quantity
- 1
- Signalling Type
- steady
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 33 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- "ENVPEP2308027EN"
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Connections - Terminals
- screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
- Package Weight(Lbs)
- 95.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeP4, M9
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
[Us] Rated Supply Voltage440...480 V, 440...480 V AC 50/60 Hz
Carbon Footprint Of The Distribution Phase [A4]0.0124228333, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0369154167, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]32 kg CO2 eq., 32.0798122066
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Plastic Content16 %
Compatibility CodeZB5
Electrical Shock Protection Classclass II conforming to IEC 60536
Light Block Supplyvia integral transformer 1.2 VA 6 V
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
ReturnabilityYes
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Versionv5.9.4
Tightening Torque0.8-1.2 N.m IEC 60947-1
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Supply Voltage 20 Supply Voltage440...480 V
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionPilot light uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh63.072
Recyclability Potential In %22
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8531809026
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 33.0188069844
- Environmental Disclosure
- "ENVPEP2308027EN"
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308027EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep Code"ENVPEP2308027EN"
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- complete body/light block assembly
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000204
ETIM 9EC000204
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic sub-assemblies
