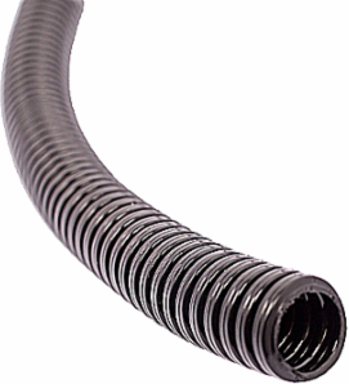

Harnessflex NC10-S/100M Slit Standard Weight Conduit
- MPN: NC10-S/100M
- UPC: 786210240572
- PPN: T-B-NC10-S/100M
CAD
$405.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Standard Weight, General Purpose Slit Conduit, NC Size 10/NW Size 8.5, Outside Diameter 11.5mm, Inside Diameter 8.4mm, Static Bend Radius 15mm, High Flexibility and Fatigue Life, IP40 Rating, Polyamide 6, Reel Length 100 Meters, Black
Specifications
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Nominal size in inch
- 1/4 inch
- Inner diameter
- 8.4mm
- Operating temperature
- -40-+120°C
- Fire resistance in accordance with UL94
- HB
- Colour
- Black
- Bending strength
- Flexible
- Halogen free
- Y
Nominal diameter10mm
Outer diameter11.5mm
MaterialPolyamide 6
Degree of protection (IP)IP40
UV resistantY
Sheathing materialNot sheathed
Lengthwise slottedY
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Harnessflex
- Application
- General Purpose
- Trade Size
- NC10/NW8.5
- Inside Diameter
- 8.4mm
- Radius
- Static Bend Radius 15mm
- Material
- Polyamide/Nylon 6
IGCC5540 Flexible Non-Metallic Conduit
TypeSlit Standard Weight Conduit
StandardADR Approved, RoHS, Conforms with End of Life Vehicle Directive (ELV)EU200/53/EC
Outside Diameter11.5mm
Length100 m
FlexibilityVery High
ColorBlack
Packaging
- Outer Quantity
- 1
- Weight Uom
- 5.08 lbs. Each
Outer Dimensions (inches)1x1x1
