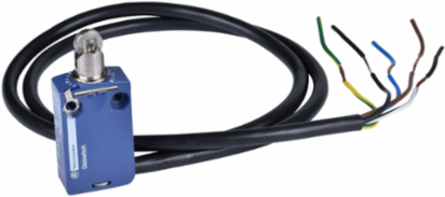

Telemecanique Sensors XCMD2502L5 Limit switch XCMD, metal, steel roller plunger, 1NC+1NO, slow action, 5 m cable
- MPN: XCMD2502L5
- PPN: TES-XCMD2502L5
CAD
$221.73
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch XCMD, metal, steel roller plunger, 1NC+1NO, slow action, 5 m cable
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Switch actuation | By 30° cam |
|---|---|
| Cable composition | 5 x 0.75 mm² |
| Contacts insulation form | Zb |
| Contact code designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| Electrical connection | Removable cable connector |
|---|---|
| Wire insulation material | PvR |
| Positive opening | With |
| Resistance across terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
Environment
| Shock resistance | 25 gn for 18 ms conforming to IEC 60068-2-27 |
|---|---|
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529 |
| Overvoltage category | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Product certifications | CSA UL |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
|---|---|
| IK degree of protection | IK06 conforming to IEC 62262 |
| Protective treatment | TC |
| Standards | CSA C22.2 No 14 IEC 60947-5-1 UL 508 |
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Product or component type | Limit switch |
| Sensor design | Miniature |
| Head type | Plunger head |
| Body material | Zamak |
| Fixing mode | By the body |
| Type of operator | Spring return roller plunger metal |
| Contacts type and composition | 1 NC + 1 NO |
| Series name | Standard format |
|---|---|
| Device short name | XCMD |
| Body type | Fixed |
| Material | Metal |
| Head material | Zamak |
| Movement of operating head | Linear |
| Type of approach | Lateral approach, 2 directions |
| Contact operation | Slow-break |
