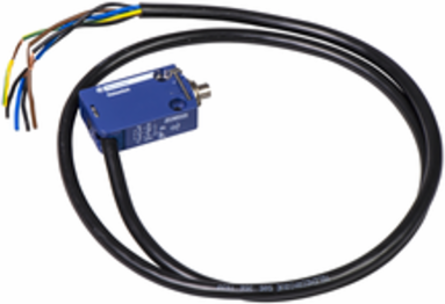

Telemecanique Sensors XCMD2510L10 Limit switch, Limit switches XC Standard, XCMD, metal end plunger, 1NC+1 NO, slow, 10 m

MPN: XCMD2510L10
PPN: TES-XCMD2510L10
UNSPSC: 39122213

$267.25

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch, Limit switches XC Standard, XCMD, metal end plunger, 1NC+1 NO, slow, 10 m

Documentation & Downloads

Specifications

Key Specifications

Movement Of Operating Head	linear
Fixing Mode	by the body
Sensor Design	miniature
Head Material	zamak
Head Type	plunger head
Series Name	standard format
Body Type	fixed
Body Material	zamak
Number Of Poles	2

Range Of Product	Telemecanique Limit switches XC Standard
Type Of Operator	spring return plunger metal
Product Or Component Type	limit switch
Material	metal
Type Of Approach	vertical approach, 1 direction
Contacts Type And Composition	1 NC + 1 NO
Contact Operation	slow-break
Device Short Name	XCMD

Complementary

Height	50-50 mm
Minimum Actuation Speed	6 m/min
Cable Length	10 m
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60664 \|\| 4 kV IEC 60947-1
[Ui] Rated Insulation Voltage	300 V 3)UL 508 \|\| 400 V 3)IEC 60947-5-1 \|\| 300 V 3)CSA C22.2 No 14
Positive Opening Minimum Force	42.5 N
Contacts Insulation Form	Zb
Maximum Actuation Speed	0.5 m/s
Minimum Force For Tripping	8.5 N
Contact Code Designation	B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A \|\| R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Depth	16 mm

Short-Circuit Protection	6 A cartridge fuse gG
Electrical Connection	removable cable connector
Net Weight	0.18 kg
Switch Actuation	on end
Electrical Durability	5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Opening	with
Mechanical Durability	10000000 cycles
Wire Insulation Material	PvR
Cable Composition	5 x 0.75 mm²
Width	30 mm
Maximum Resistance Across Terminals	25 mOhm IEC 60255-7 category 3

Environment

Product Certifications	CCC \|\| UL \|\| CSA
Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	25 gn 18 ms IEC 60068-2-27
Ip Degree Of Protection	IP66 conforming to IEC 60529 \|\| IP67 conforming to IEC 60529 \|\| IP68 conforming to IEC 60529
Overvoltage Category	class I IEC 61140 \|\| class I NF C 20-030

Ik Degree Of Protection	IK06 EN 62262
Standards	EN/IEC 60947-5-1 \|\| EN/IEC 60204-1 \|\| CSA C22.2 No 14 \|\| UL 508
Vibration Resistance	25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TC

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110612EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Circularity Profile	ENVEOLI110612EN

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
