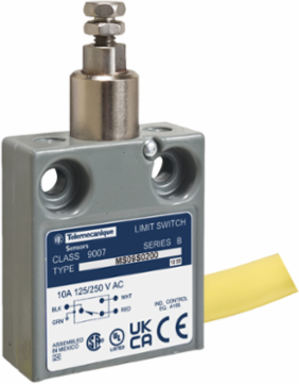

Telemecanique Sensors 9007MS02G0410 Limit switch, 9007MS, miniature, parallel roller plunger, 100mA at 125VAC, 1NO/1NC, 12 feet of cable, NEMA 4, 6P, 12, 13

The heavy-duty miniature MS limit switches are completely encapsulated and intended for difficult applications such as machine tools, earth moving equipment, and general transportation. This parallel roller plunger limit switch has one normally open and one normally closed contact. These gold contacts can break 100mA and 125VAC or 30mA at 28VDC. This limit switch is prewired with a gray #18 AWG SJTO cable that is 12 feet long. The cable comes out the bottom of this switch. The limit switch is NEMA 1, 2, 4, 6, 6P, 12, and 13 rated. It is also rated IP67. Limit switch is 1.75 inches tall, 1.56 inches wide and 0.62 inches deep. This limit switch is UL Listed and CSA certified. This product is certified by CE, UL Listed and CSA. It meets LR 25490 Class 32 11 03 and E78403 standards. The 9007MS/ML heavy duty metal miniature enclosed switches with a 39mm metal body, potted and pre wired with cable and connector options available. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
