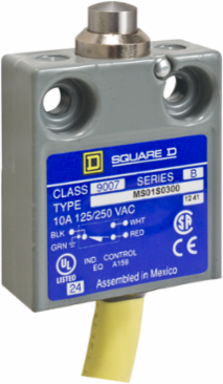

Telemecanique Sensors 9007MS01S0500 Limit switch 9007 MS/ML, top push plunger, 240 VAC, 10 A, option version, SJTO cable (AWG 18), 18 ft, yellow, By the body
- MPN: 9007MS01S0500
- UPC: 785901550556
- PPN: TES-9007MS01S0500
CAD
$247.97
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch 9007 MS/ML, top push plunger, 240 VAC, 10 A, option version, SJTO cable (AWG 18), 18 ft, yellow, By the body
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Fixing mode | By the body |
|---|---|
| Type of operator | Spring return plunger stainless steel - |
| Switch actuation | On end |
| Switch function | SPDT |
| Contacts material | Silver contacts |
| Positive opening | Without |
| Type of cable | SJTO cable (AWG 18), 18 ft, yellow |
| Wire insulation material | PVC |
| Movement of operating head | Linear |
|---|---|
| Type of approach | Vertical approach, 1 direction |
| Contacts type and composition | NC-NO |
| Contact form | Form C |
| Contact operation | Snap action |
| Electrical connection | Pre-wired cable bottom |
| Terminals description ISO n°1 | (black)com (green-yellow)gnd (red)NC (white)NO |
| Marking | CE CSA UL |
Main
| Range of product | 9007 |
|---|---|
| Product or component type | Limit switch |
| Sensor design | Miniature |
| Head type | Plunger head |
| Body material | Cast zinc |
| Series name | Miniature potted |
|---|---|
| Device short name | 9007MS/ML |
| Body type | Fixed |
| Material | Metal |
Environment
| Shock resistance | 35 gn for 9 ms conforming to IEC 60068-2-27 |
|---|---|
| NEMA degree of protection | NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250 |
| Protective treatment | Epoxy powder coat |
| Standards | E78403 LR 25490 Class 32 11 03 |
| Vibration resistance | 10 gn (f= 75-1200 Hz) conforming to IEC 60068-2-6 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| Product certifications | CE CSA UL |
