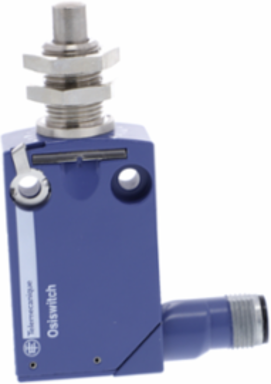

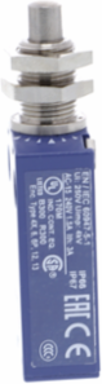

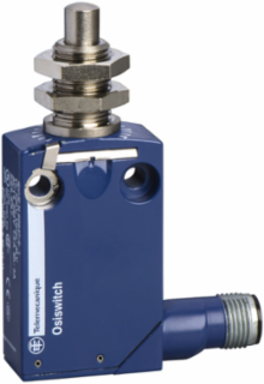

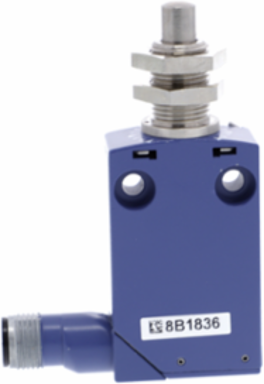

Telemecanique Sensors XCMD21F0M12 Limit switch, Limit switches XC Standard, XCMD, M12 metal end plunger, 1C/O, snap, M12
- MPN: XCMD21F0M12
- PPN: TES-XCMD21F0M12
CAD
$213.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XCMD miniature format limit switch has a metal end plunger and a Zamak body. It has 1 x co snap action contacts and a M12 4-pin connector. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. It has a standard M12 connector, compatible with all existing market sensor cabling.
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the head
- Sensor Design
- miniature
- Head Material
- zamak
- Head Type
- M12 plunger head
- Series Name
- standard format
- Body Type
- plug-in body
- Body Material
- zamak
- Number Of Poles
- 1
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return plunger metal
Product Or Component Typelimit switch
Materialmetal
Type Of Approachvertical approach, 1 direction
Contacts Type And Composition1 C/O
Contact Operationsnap action
Device Short NameXCMD
Complementary
- Height
- 50-50 mm
- Minimum Actuation Speed
- 0.01 m/min
- [Ithe] Conventional Enclosed Thermal Current
- 3 A
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60664 || 2.5 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-5-1
- Positive Opening
- without
- [Ie] Rated Operational Current
- 1.5 A 240 V, AC-15 EN/IEC 60947-5-1 appendix A || 0.1 A 250 V, DC-13 EN/IEC 60947-5-1 appendix A
- Maximum Actuation Speed
- 0.5 m/s
- Width
- 30 mm
- Maximum Resistance Across Terminals
- 25 mOhm IEC 60255-7 category 3
Short-Circuit Protection4 A cartridge fuse gG
Electrical Connectionmale connector M12, 4 pins
Net Weight0.1 kg
Switch Actuationon end
Electrical Durability5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Contacts Insulation FormZa
Mechanical Durability10000000 cycles
Minimum Force For Tripping8.5 N
Depth16 mm
Environment
- Product Certifications
- CSA || UL || CCC
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 25 gn 18 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP68 IEC 60529
- Electrical Shock Protection Class
- class I IEC 61140 || class I NF C 20-030
Ik Degree Of ProtectionIK06 EN 62262
StandardsCSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60204-1
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110612EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110612EN
