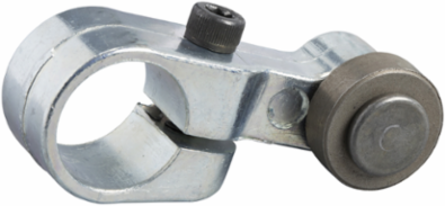

Telemecanique Sensors 9007B1 Limit switch lever, 9007, arm t+ft+options

Limit switch lever, 9007, arm t+ft+options
  • MPN: 9007B1
  • UPC: 785901759720
  • PPN: TES-9007B1
  • UNSPSC: 39122213

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$54.50/ EA

Description

This product is part of the Nema Limit Switches range. This limit switch lever has a spring return convertible roller operator and provides a lateral approach without positive opening operation. The switch lever with a rotary movement and switching actuation of 30° cam. This roller lever has spring return operator, made of cast zinc. Its dimensions are 19.05mm (diameter) x 6.35mm (width). The lever length is 38.1mm. It weighs 0.05kg. It is associated with complete products such as 9007FT, 9007T and 9007CXXS9. The associated heads are 9007BS9, 9007CS9, 9007T5S9, 9007T10S9, 9007NS9 and 9007AS9. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.

Specifications

Environment

Ambient Air Temperature For Operation
-10-185 °F
Environmental Characteristic
standard environment
Ambient Air Temperature For Storage-10-185 °F

Contractual warranty

Warranty
18 months

Offer Sustainability

Environmental Disclosure
ENVPEP111160EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope

Complementary

Switch Actuation
by 30° cam
Net Weight0.1 lb(US)

Specifications

Series Name
severe duty
Type Of Roller
1 steel outside roller (convertible) 0.75 in 0.25 in
Type Of Approach
lateral approach
Positive Opening
without
Product Or Component Type
limit switch lever
Type Of Operator
cast zinc spring return roller lever 1.5-1.5 in - convertible roller
Movement Of Operating Headrotary
Associated Complete Product9007FT || 9007T || 9007C..S9
Range Of Product9007
Associated Head9007BS9 || 9007CS9 || 9007T5S9 || 9007T10S9 || 9007NS9 || 9007AS9
Device Short Name9007T/FT
