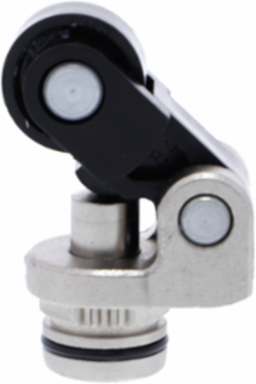

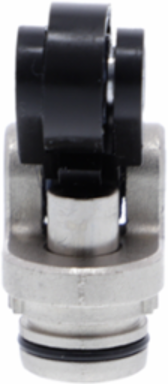

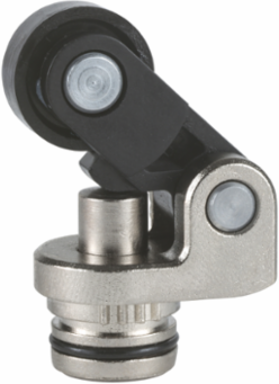

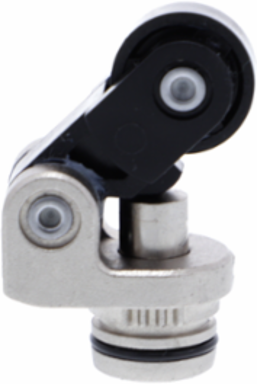

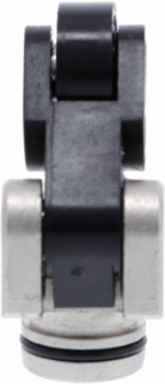

Telemecanique Sensors ZCE21 Limit switch head, Limit switches XC Standard, ZCE, roller lever plunger horizontal direction
- MPN: ZCE21
- PPN: TES-ZCE21
- UNSPSC: 39122213
CAD
$35.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This ZCE standard head has a thermoplastic roller lever plunger with horizontal actuation. It can be matched with any body from the XCKD, XCKP and XCKT ranges.
Documentation & Downloads
Specifications
Key Specifications
- Type Of Approach
- lateral approach, 1 direction
- Movement Of Operating Head
- linear
- Type Of Operator
- roller lever plunger spring return thermoplastic
- Associated Body
- ZCMD39L1 || ZCT21N12 || ZCD27 || ZCMD21L5 || ZCD35 || ZCMD21C12 || ZCD31 || ZCT21G11 || ZCMD25L5 || ZCMD41L2 || ZCP27 || ZCMD29L1 || ZCD26 || ZCMD21L08U78 || ZCP35 || ZCT27P16 || ZCMD29L5 || ZCP28 || ZCD25 || ZCD21 || ZCP37 || ZCMD21L08R12 || ZCMD81L1 || ZCMD25L1 || ZCT25G11 || ZCT28G11 || ZCMD29C12 || ZCT26N12 || ZCT27G11 || ZCMD41L5 || ZCMD21M12 || ZCD37 || ZCP29M12 || ZCMD21L2 || ZCT21P16 || ZCD29M12 || ZCMD37L2 || ZCT26G11 || ZCP29 || ZCT28N12 || ZCD28 || ZCMD29L2 || ZCMD21L1 || ZCMD25L2 || ZCMD81L2 || ZCT25N12 || ZCP21M12 || ZCP21 || ZCMD39L2 || ZCMD61M12 || ZCMD61C12 || ZCMD81L5 || ZCD39 || ZCT28P16 || ZCD29 || ZCP39 || ZCP25 || ZCD21M12 || ZCT27N12 || ZCMD37L5 || ZCT25P16 || ZCP31 || ZCMD37L1 || ZCP26 || ZCT26P16 || ZCMD39L5 || ZCMD41L1 || ZCMD69C12
- Device Short Name
- ZCE
Series Namestandard format
Range Of ProductTelemecanique Limit switches XC Standard
Product Or Component Typelimit switch head
Product CompatibilityXCKD || XCKP || XCMD || XCKT
Head Typeplunger head
Complementary
- Switch Actuation
- by 30° cam
Positive Openingwith
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
