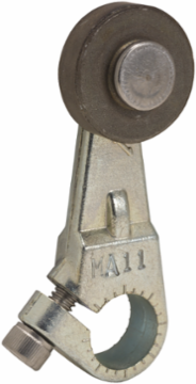

Limit switch lever, 9007, arm aw+c +options
Telemecanique Sensors

Telemecanique Sensors 9007MA2 Limit switch lever, 9007, arm aw+c +options

  • MPN: 9007MA2
  • UPC: 785901870425
  • PPN: TES-9007MA2
  • UNSPSC: 39122213

CAD

$44.97

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Limit switch lever, 9007, arm aw+c +options

Documentation & Downloads

Specifications

Key Specifications

Series Name
heavy duty
Type Of Roller
1 steel outside roller 0.63 in 0.63 in
Type Of Approach
lateral approach
Positive Opening
without
Product Or Component Type
limit switch lever
Type Of Operator
cast zinc spring return roller lever 1.5-1.5 in - -
Movement Of Operating Headrotary
Associated Complete Product9007C || 9007AW
Range Of Product9007
Associated Head9007C || 9007T10 || 9007T5 || 9007B || 9007N || 9007A
Device Short Name9007C

Complementary

Switch Actuation
by 30° cam
Net Weight0.1 lb(US)

Environment

Ambient Air Temperature For Operation
-20-185 °F
Environmental Characteristic
standard environment
Ambient Air Temperature For Storage-20-185 °F

Contractual warranty

Warranty
18 months

Offer Sustainability

Environmental Disclosure
ENVPEP111160EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
