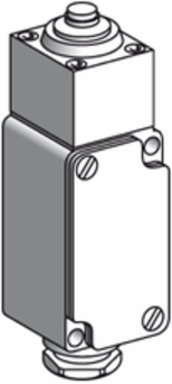

Telemecanique Sensors XC2JC161 Limit switch, Limit switches XC Standard, XC2 J, metal end plunger, 1 C/O
- MPN: XC2JC161
- PPN: TES-XC2JC161
- UNSPSC: 39122213
CAD
$189.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XC2 J, metal end plunger, 1 C/O
Documentation & Downloads
Specifications
Key Specifications
| Movement Of Operating Head | linear |
|---|---|
| Type Of Operator | end plunger metal |
| Material | metal |
| Switch Actuation | on end |
| Series Name | special format |
| Contact Operation | snap action |
| Maximum Actuation Speed | 0.5 m/s |
| Device Short Name | XC2J |
| Repeat Accuracy | 0.01 mm with 1 million operating cycles |
| Range Of Product | OsiSense XC |
|---|---|
| Product Or Component Type | limit switch |
| Head Type | plunger head |
| Type Of Approach | vertical approach, 1 direction |
| Body Type | fixed |
| Product Specific Application | for severe applications |
| Minimum Force For Tripping | 18 N |
| Number Of Poles | 1 |
Complementary
| Height | 112-112 mm |
|---|---|
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Electrical Connection | screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Contacts Material | silver plated contacts |
| Net Weight | 0.6 kg |
| Electrical Durability | 5000000 cycles, DC-13, 120 V, 4 W 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Contacts Insulation Form | Za |
| Contact Code Designation | A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 |
| Depth | 41 mm |
| Terminals Description Iso N°1 | (13-14-11-12)OF |
|---|---|
| Minimum Actuation Speed | 0.001 m/min |
| Fixing Mode | by the body |
| Cable Entry | 1 entry incorporating cable gland 6-13.5 mm |
| [Ui] Rated Insulation Voltage | 500 VIEC 60947-5-1 || 500 VNF C 20-040 group C || 300 VCSA C22.2 No 14 |
| Positive Opening | without |
| Mechanical Durability | 30000000 cycles |
| Width | 40 mm |
| Maximum Resistance Across Terminals | 25 MOhm IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A |
Environment
| Product Certifications | CSA || NEMKO || DEMKO |
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Shock Resistance | 25 gn 18 ms IEC 60068-2-27 |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 || IP657 conforming to NF C 20-010 |
| Electrical Shock Protection Class | class I IEC 60536 || class I NF C 20-030 |
| Ik Degree Of Protection | IK08 |
|---|---|
| Standards | VDE 0660-200 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60337-1 |
| Vibration Resistance | 10 gn 10-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TC |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
