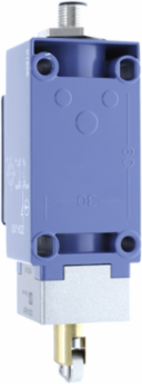

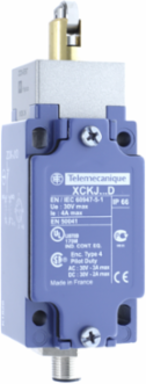

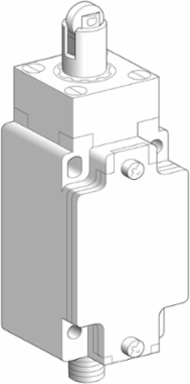

Telemecanique Sensors XCKJ167D Limit switch, XC Standard, XCKJ, steel roller plunger reinforced, 1NC+1 NO, snap, M12
- MPN: XCKJ167D
- PPN: TES-XCKJ167D
- UNSPSC: 39122213
CAD
$291.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XCKJ industrial format (EN 50041) limit switch has a steel roller plunger and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a industrial CENELEC EN50041 form A format. It is IP66 and IK07 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV, EAC standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the body
- Sensor Design
- form C CENELEC EN 50041
- Head Material
- zamak
- Head Type
- plunger head
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- zamak
- Number Of Poles
- 2
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return roller plunger metal reinforced
Product Or Component Typelimit switch
Materialmetal
Type Of Approachlateral approach, 2 directions
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Device Short NameXCKJ
Complementary
- Height
- 89-89 mm
- Short-Circuit Protection
- 4 A cartridge fuse gG
- Number Of Steps
- 1
- Net Weight
- 0.455 kg
- Switch Actuation
- by 30° cam
- Electrical Durability
- 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- [Ie] Rated Operational Current
- 0.27 A 50 V, DC-13 EN/IEC 60947-5-1 appendix A || 3 A 50 V, AC-15 EN/IEC 60947-5-1 appendix A
- Maximum Actuation Speed
- 1 m/s
- Width
- 40 mm
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
Terminals Description Iso N°1(13-14)NO || (21-22)NC
Electrical Connectionmale connector M12, 5 pins
[Ithe] Conventional Enclosed Thermal Current4 A
[Uimp] Rated Impulse Withstand Voltage0.8 kV IEC 60664 || 0.8 kV IEC 60947-1
[Ui] Rated Insulation Voltage60 V 3)IEC 60947-1
Positive Opening Minimum Force40 N
Contacts Insulation FormZb
Mechanical Durability25000000 cycles
Minimum Force For Tripping16 N
Depth44 mm
Environment
- Product Certifications
- CCC || CSA || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529
- Overvoltage Category
- class I IEC 61140 || class I NF C 20-030
Ik Degree Of ProtectionIK07 EN 50102
StandardsEN 60204-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || EN 60947-5-1 || IEC 60204-1 || CENELEC EN 50041
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
