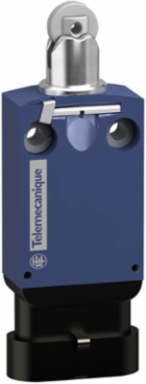

Telemecanique Sensors XCMD2102AM4 Limit switch XCMD, metal, steel roller plunger, 1NC+1NO, snap action, AMP 4-pin connector
- MPN: XCMD2102AM4
- PPN: TES-XCMD2102AM4
CAD
$160.03
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch XCMD, metal, steel roller plunger, 1NC+1NO, snap action, AMP 4-pin connector
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Switch actuation | By 30° cam |
|---|---|
| Contacts insulation form | Zb |
| Resistance across terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
| Electrical connection | Male connector AMP connector, 4 pins |
|---|---|
| Positive opening | With |
Environment
| Shock resistance | 25 gn for 18 ms conforming to IEC 60068-2-27 |
|---|---|
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529 |
| Electrical shock protection class | Class III conforming to IEC 61140, class III conforming to NF C 20-030 |
| Product certifications | CCC cURus |
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
|---|---|
| IK degree of protection | IK06 conforming to EN 62262 |
| Protective treatment | TC |
| Standards | CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1 UL 508 |
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Product or component type | Limit switch |
| Sensor design | Miniature |
| Head type | Plunger head |
| Body material | Zamak |
| Fixing mode | By the body |
| Type of operator | Spring return roller plunger metal |
| Contacts type and composition | 1 NC + 1 NO |
| Series name | Standard format |
|---|---|
| Device short name | XCMD |
| Body type | Plug-in body |
| Material | Metal |
| Head material | Zamak |
| Movement of operating head | Linear |
| Type of approach | Lateral approach, 2 directions |
| Contact operation | Snap action |
