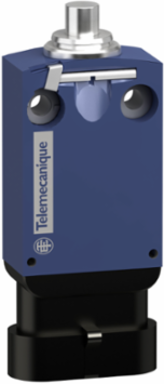

Telemecanique Sensors XCMD2110AM4 Limit switch, Limit switches XC Standard, XCMD, metal end plunger, 1NC+1 NO, snap, AMP 4P

This product is part of the XC Standard range, an offer of limit switches. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NC and 1 NO, form Zb, snap action contacts. It provides switch actuation of 30° cam. The limit switch has a spring return metal plunger and supports lateral approach in 2 directions. The movement of the limit switch operating head is linear. It is furnished with 4-pin AMP male connector for electrical connection. It is an IP66/IP69/IK06 rated product. This linear head limit switch has a plug-in body, made of Zamak. Its dimensions are 32mm (width) x 16mm (depth) x 78mm (height). It weighs 0.09kg. This product is certified by cURus and CCC. It meets UL 508, CSA, C22.2 No 14, EN/IEC 60947-5-1 and EN/IEC 60204-1 standards. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
