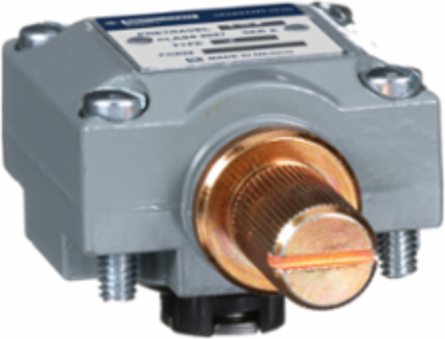

Telemecanique Sensors 9007AO1 Snap switch 9007A, 600 VAC, 15 A, option version, Spring return plunger plastic with thermoplastic end, terminals description ISO n°1 (1-2)NC

MPN: 9007AO1
UPC: 785901759034
PPN: TES-9007AO1

$70.85

Available to Order from Manufacturer

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Snap switch 9007A, 600 VAC, 15 A, option version, Spring return plunger plastic with thermoplastic end, terminals description ISO n°1 (1-2)NC

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Operator profile	Plunger head
Material	Metal
Fixing mode	By the body
Type of operator	Spring return plunger plastic with thermoplastic end
Type of approach	Vertical approach, 1 direction
Contact operation	Snap action
Contacts type and composition	NC-NO, switch function: SPDT-DB
Positive opening	Without

Body material	Cast zinc
Operator material	Cast zinc
Movement of operating head	Linear
Switch actuation	On end
Electrical connection	1-2 cables for 6 binder head screw terminals (AWG 22...AWG 14)
Contacts material	Silver contacts
Contact form	Form Z
Terminals description ISO n°1	(1-2)NC

Main

Range of product	9007
Product or component type	Snap basic limit switch
Body type	Fixed

Series name	Heavy duty
Device short name	9007AO/CO

Environment

NEMA degree of protection	NEMA 1 conforming to Nema type 250

IP degree of protection	IP20 conforming to IEC 60529

Snap switch 9007A, 600 VAC, 15 A, option version, Spring return plunger plastic with thermoplastic end, terminals description ISO n°1 (1-2)NC
