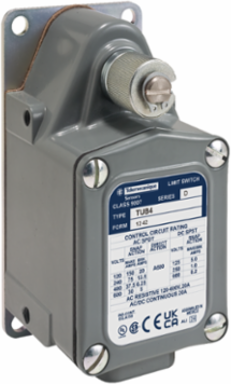

Schneider Electric 9007TUB8 Limit switch, 9007, 600 VAC 30amp t +options
- MPN: 9007TUB8
- UPC: 785901845003
- PPN: SCH-9007TUB8
CAD
$509.42
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Limit switch, 9007, 600 VAC 30amp t +options
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- severe duty mill
- Body Type
- fixed
- Product Or Component Type
- limit switch
- Device Short Name
- 9007T/FT
Sale Per Indivisible Quantity1
Range Of Product9007
Device Applicationuniversal mill switch
Head Typerotary head
Complementary
- Switch Actuation
- from left or right || CW and CCW
- Function Available
- neutral position
- Movement Of Operating Head
- rotary
- Terminals Description Iso N°1
- B (right side contact) || A (left side contact)
- Short-Circuit Protection
- 20 A Bussmann class CC KTK-R-21 fuse non-time delay
- Positive Opening
- without
- Contact Operation
- snap action
- Contacts Material
- silver flashed copper
- Type Of Operator
- stay put without operating lever
- [Ithe] Conventional Enclosed Thermal Current
- 20 A
- Contact Form
- Form Z
- Electrical Connection
- screw-clamp terminals AWG 22...AWG 12
- Contact Code Designation
- A600, AC (Ue = 600 V) Ie = 5 A NEMA rating designation || A600, AC (Ue = 480 V) Ie = 6.25 A NEMA rating designation || A600, AC (Ue = 240 V) Ie = 12.5 A NEMA rating designation || A600, AC (Ue = 120 V) Ie = 20 A NEMA rating designation || P600, DC (Ue = 600 V) Ie = 0.2 A NEMA rating designation || P600, DC (Ue = 250 V) Ie = 1 A NEMA rating designation || P600, DC (Ue = 120 V) Ie = 5 A NEMA rating designation
- Depth
- 2.44 in
- Net Weight
- 2.5 lb(US)
- Repeat Accuracy
- +/- 0.004 in linear travel of cam on 1.5 in lever arm
Maximum Displacement Angle81 °
Height4.66-4.66 in
Base Plate Stylestyle B
Type Of Approachlateral approach
[Ui] Rated Insulation Voltage600 V 3)IEC 609470-1 || 600 V 3)UL 508 || 600 V 3)CSA C22.2 No 14
Tripping Angle6 °
Fixing Modeby the body
Maximum Actuation Speed130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only
Body Materialcast zinc
Cable Entry1 entry for 1/2" - 14 NPT ANSI B1.20.1
Switch FunctionSPDT-DB
[Uimp] Rated Impulse Withstand Voltage2.5 kV AC for 1 minute CE || 2.2 kV AC for 1 minute UL || 2.64 kV AC for 1 minute CSA
Width2.25 in
Minimum Torque For Tripping2.5 lbf.in
Number Of Poles1
Contact Sequence Number8
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Environment
- Ambient Air Temperature For Operation
- -10-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Shock Resistance
- 30 gn 9 ms IEC 60068-2-27
- Protective Treatment
- corrosion resistant gray paint
Ambient Air Temperature For Storage-10-185 °F
Electrical Shock Protection Classclass 0 IEC 61140
Vibration Resistance10 gn 10-55 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP67 IEC 60529
