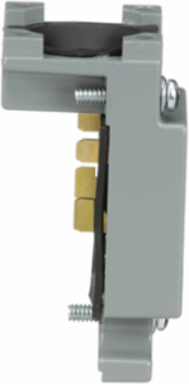

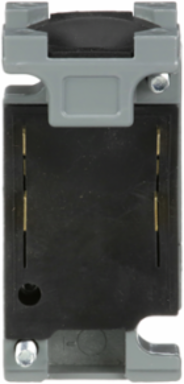

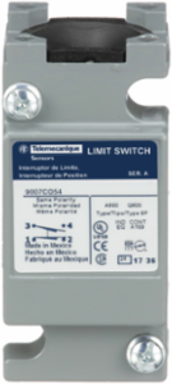

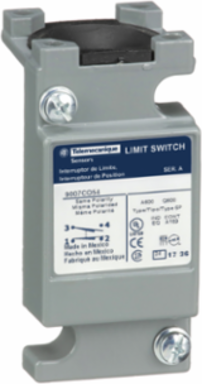

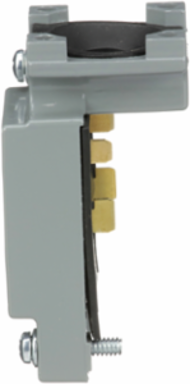

Telemecanique Sensors 9007CO54 Limit switch plug in unit, 9007, 600 V 10 A c
Telemecanique Sensors 9007CO54 Limit switch plug in unit, 9007, 600 V 10 A c
- MPN: 9007CO54
- UPC: 785901500841
- PPN: TES-9007CO54
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$147.13/ EA
Description
This product is part of the Nema Limit Switches range, an offer of limit switch plug-in bodies. The plug-in body is an accessory of limit switch. It has 1 normally closed + 1 normally opened, SPDT-DB (single pole double throw, double break) form Z, snap action contacts. It is a safety switch plug-in unit with a rated operating current of 1.2A at 600V AC, 1.5A at 480V AC, 3A at 240V AC, 6A at 120V AC, 0.1A at 600V DC, 0.27A at 250V AC, 0.55A at 125V DC and conventional enclosed thermal current of 10A. It is an IP67 and NEMA 1/2/4/6/6P/12/13 rated product. It offers mechanical durability of about 10 million operating cycles and electrical durability of about 1 million operating cycles. It is made of zinc with epoxy powder coat finish. Its dimensions are 39.37mm (width) x 45.47mm (depth) x 79.76mm (height) and weighs 0.57kg. This product is certified by UL, CSA and CE. It complies with UL 508, NEMA 250 and C22-2-14 standards. It is associated with 9007CT54 connection component. Compliant with US and international standards, the 9007 series limit switches can withstand the impact of heavy industry. This constitutes a comprehensive range of limit switches rigged and dependable built with unparalleled quality.
Specifications
Environment
- Shock Resistance
- 60 gn 9 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP67 IEC 60529
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Protective Treatment
- epoxy powder coat
Vibration Resistance25 gn 10-150 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-20-185 °F
Electrical Shock Protection Classclass 0 IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 3.14-3.14 in
- Contacts Material
- silver contacts
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Net Weight
- 1.25 lb(US)
- Short-Circuit Protection
- 10 A CC non-time delay
- Mechanical Durability
- 10000000 cycles
- Switch Function
- SPDT-DB
- Width
- 1.55 in
- Depth
- 1.79 in
Terminals Description Iso N°1(1-2)NC || (3-4)NO
Associated Head9007C
Contact FormForm Z
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14
[Ie] Rated Operational Current1.2 A 600 V AC, A600 NEMA rating designation || 1.5 A 480 V AC, A600 NEMA rating designation || 3 A 240 V AC, A600 NEMA rating designation || 6 A 120 V AC, A600 NEMA rating designation || 0.1 A 600 V DC, Q600 NEMA rating designation || 0.27 A 250 V AC, Q600 NEMA rating designation || 0.55 A 125 V DC, Q600 NEMA rating designation
Body Materialzinc
[Uimp] Rated Impulse Withstand Voltage2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
Associated Connection Component9007CT54
Electrical Durability1000000 cycles
Specifications
- Range Of Product
- 9007
- Ambient Air Temperature For Operation
- -20-185 °F standard environment
- Local Display
- without
- Contacts Type And Composition
- NC-NO
- Body Type
- standard plug-in
- Positive Opening
- without
- Product Compatibility
- 9007C
- Number Of Poles
- 1
Number Of Steps1
Product Or Component Typelimit switch plug-in unit
Series Nameheavy duty
Sale Per Indivisible Quantity1
Environmental Characteristicstandard environment
Contact Operationsnap action
Device Short Name9007C
