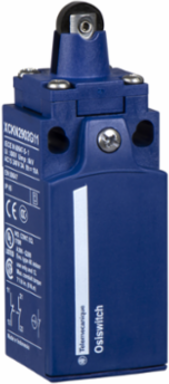

Telemecanique Sensors XCKN2502G11 Limit switch, Limit switches XC Standard, XCKN, plastic roller plunger, 1NC+1 NO, slow, Pg11

MPN: XCKN2502G11
PPN: TES-XCKN2502G11
UNSPSC: 39122213

$43.67

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch, Limit switches XC Standard, XCKN, plastic roller plunger, 1NC+1 NO, slow, Pg11

Documentation & Downloads

Specifications

Key Specifications

Movement Of Operating Head	linear
Fixing Mode	by the body
Sensor Design	compact form C
Product Or Component Type	limit switch
Material	plastic
Type Of Approach	lateral approach, 2 directions
Contacts Type And Composition	1 NC + 1 NO
Contact Operation	slow-break, break before make
Device Short Name	XCKN

Range Of Product	Telemecanique Limit switches XC Standard
Type Of Operator	spring return roller plunger plastic
Cable Entry	1 entry tapped for Pg 11 cable gland
Head Material	plastic
Head Type	plunger head
Series Name	standard format
Body Type	fixed
Body Material	plastic
Number Of Poles	2

Complementary

Height	85-85 mm
Short-Circuit Protection	10 A cartridge fuse gG
Net Weight	0.145 kg
Switch Actuation	by 30° cam
Electrical Durability	5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Opening	with
Mechanical Durability	10000000 cycles
Minimum Force For Tripping	12 N
Width	30 mm

Terminals Description Iso N°1	(13-14)NO \|\| (21-22)NC
Electrical Connection	screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60664 \|\| 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage	300 VUL 508 \|\| 500 V 3)IEC 60947-1 \|\| 300 VCSA C22.2 No 14
Positive Opening Minimum Force	20 N
Contacts Insulation Form	Zb
Maximum Actuation Speed	0.3 m/s
Contact Code Designation	A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A \|\| R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Depth	30 mm

Environment

Product Certifications	CSA \|\| CCC \|\| UL
Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	45 gn 11 ms IEC 60068-2-27
Ip Degree Of Protection	IP65 IEC 60529
Overvoltage Category	class II IEC 61140 \|\| class II NF C 20-030

Ik Degree Of Protection	IK04 EN 50102
Standards	CSA C22.2 No 14 \|\| IEC 60947-5-1 \|\| EN 60204-1 \|\| UL 508 \|\| EN 60947-5-1 \|\| IEC 60204-1
Vibration Resistance	25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TC

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1306065
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
