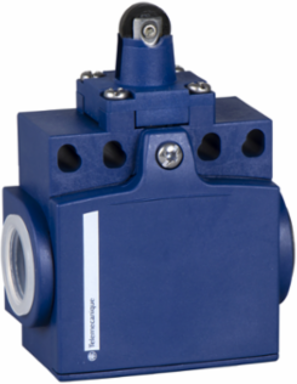

Telemecanique Sensors XCNT2502G11 Limit switch, Limit switches XC Standard, XCNT, plastic roller plunger, 1NC+1 NO, slow, Pg11
- MPN: XCNT2502G11
- PPN: TES-XCNT2502G11
CAD
$48.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCNT, plastic roller plunger, 1NC+1 NO, slow, Pg11
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the body
- Sensor Design
- compact
- Product Or Component Type
- limit switch
- Material
- plastic
- Type Of Approach
- lateral approach, 2 directions
- Contacts Type And Composition
- 1 NC + 1 NO
- Contact Operation
- slow-break, break before make
- Device Short Name
- XCNT
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return roller plunger plastic
Cable Entry2 entries tapped for Pg 11 cable gland
Head Materialplastic
Head Typeplunger head
Series Namestandard format
Body Typefixed
Body Materialplastic
Number Of Poles2
Complementary
- Height
- 77.6-77.6 mm
- Electrical Connection
- screw-clamp open terminals 1 x 0.34...2 x 1.5 mm²
- Switch Actuation
- by 30° cam
- Positive Opening Minimum Force
- 20 N
- Contacts Insulation Form
- Zb
- Maximum Actuation Speed
- 0.3 m/s
- Contact Code Designation
- A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
- Depth
- 30.5 mm
Short-Circuit Protection10 A cartridge fuse gG
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Positive Openingwith
Mechanical Durability10000000 cycles
Minimum Force For Tripping12 N
Width58.8 mm
Environment
- Product Certifications
- CCC || CSA || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- Electrical Shock Protection Class
- class II IEC 61140 || class II NF C 20-030
Ik Degree Of ProtectionIK04 EN 50102
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60204-1 || UL 508
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110606EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI110603EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
