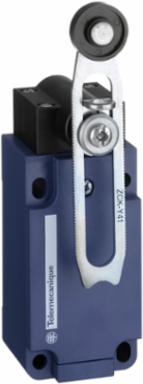

Telemecanique Sensors XCKS141 Limit switch XCKS, plastic, roller lever, 1NC+1NO, Pg13 cable entry, Snap action
- MPN: XCKS141
- PPN: TES-XCKS141
CAD
$172.08
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch XCKS, plastic, roller lever, 1NC+1NO, Pg13 cable entry, Snap action
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Switch actuation | By 30° cam |
|---|---|
| Contacts insulation form | Zb |
| Contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
|---|---|
| Positive opening | With |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Product or component type | Limit switch |
| Body type | Fixed |
| Material | Plastic |
| Head material | Plastic |
| Movement of operating head | Rotary |
| Type of approach | Lateral approach, 1 or 2 programmable direction |
| Contacts type and composition | 1 NC + 1 NO |
| Series name | Standard format |
|---|---|
| Device short name | XCKS |
| Head type | Rotary head |
| Body material | Plastic |
| Fixing mode | By the body |
| Type of operator | Spring return roller lever thermoplastic variable length |
| Cable entry | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm |
| Contact operation | Snap action |
Environment
| Shock resistance | 40 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529, IP66 conforming to IEC 60529 |
| Electrical shock protection class | Class II conforming to IEC 61140, class II conforming to NF C 20-030 |
| Protective treatment | TC |
| Standards | CENELEC EN 50041 CSA C22.2 No 14 IEC 60204-1 IEC 60947-5-1 UL 508 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
|---|---|
| IK degree of protection | IK05 conforming to IEC 62262 |
| Overvoltage category | Class II conforming to IEC 61140, class II conforming to NF C 20-030 |
| Product certifications | CCC CSA UL |
