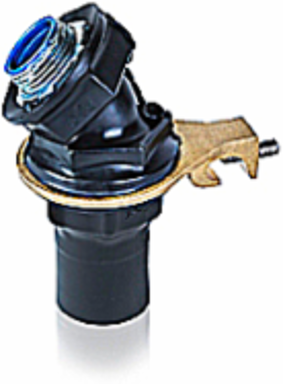

Ocal ST11/245GR-G Liquidtight Conduit Fitting - 45 Degree
- MPN: ST11/245GR-G
- UPC: 704508034283
- PPN: T-B-ST11/245GR-G
CAD
$1431.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PVC Coated Liquitight Conduit Connector with Grounding Ring, 45 Degree, Pipe Size 1-1/2 Inch/41 Metric, Minimum .040 Inch (40 mil) PVC Coating on Exterior, Steel Fitting, Dark Gray
Features
- A minimum of .040 inch (40 mil) PVC coating is bonded to the exterior.
- Double coated with a nominal .002 inch (2 mil) blue urethane on both the interior and exterior, before PVC coating is applied.
- Pressure-sealing sleeves are designed to protect the connection.
- PVC coated connectors are available in straight, 45 degree and 90 degree configurations.
- Ocal uses T&B Industrial Liquidtight fittings to insure quality installations.
- Ground Ring with Naval Brass
- Ground Ring meets UL 467 for grounding and bonding
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121420 Liquid tight connectors
- Brand Name
- Ocal
- Special Features
- Pressure-Sealing Sleeves Protect the Connection
- Standard
- UL, CSA
- Connection
- 45 Degree
- Finish
- PVC Coated
- NEMA Rating
- 4X
IGCC4585 Liquid tight connectors
TypeLiquidtight Conduit Fitting - 45 Degree
ApplicationTo Positively Bond Conduit to Box or Enclosure
Size1-1/2 Inch/41mm
MaterialSteel
ColorDark Gray
Environmental ConditionsHazardous Locations
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Nominal size in inch
- 1 1/2 inch
- Revolving thread
- N
- Material housing
- Steel
Nominal diameter41mm
Model45°-elbow
Construction typeExternal thread
Surface protectionOther
Packaging
- Outer Quantity
- 12
- Weight Uom
- 1.83 lbs. Each
Outer Dimensions (inches)13.25x7.25x7.37
