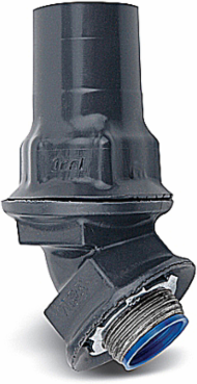

Ocal ST3/445-G Liquidtight Conduit Fitting - 45 Degree

MPN: ST3/445-G
UPC: 704508407605
PPN: T-B-ST3/445-G

$165.52

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PVC Coated Liquitight Conduit Connector, 45 Degree, Pipe Size 3/4 Inch/21 Metric, Minimum .040 Inch (40 mil) PVC Coating on Exterior, Steel Fitting, Dark Gray

Features

A minimum of .040 inch (40 mil) PVC coating is bonded to the exterior.
Double coated with a nominal .002 inch (2 mil) blue urethane on both the interior and exterior, before PVC coating is applied.
Pressure-sealing sleeves are designed to protect the connection.
PVC coated connectors are available in straight, 45 degree and 90 degree configurations
Ocal uses T&B Industrial Liquidtight fittings to insure quality installations.

Specifications

European Specifications (ETIM)

ETIM	EC001180 Screw connection for protective metallic hose
Nominal size in inch	3/4 inch
Revolving thread	N
Material housing	Steel

Nominal diameter	21mm
Model	45°-elbow
Construction type	External thread
Surface protection	Other

North American Specifications (UNSPSC)

UNSPSC	39121420 Liquid tight connectors
Brand Name	Ocal
Special Features	Pressure-Sealing Sleeves Protect the Connection
Size	3/4 Inch/21mm
Material	Steel
Color	Dark Gray

IGCC	4585 Liquid tight connectors
Type	Liquidtight Conduit Fitting - 45 Degree
Application	To Positively Bond Conduit to Box or Enclosure
Connection	45 Degree
Finish	PVC Coated
Environmental Conditions	Hazardous Locations
