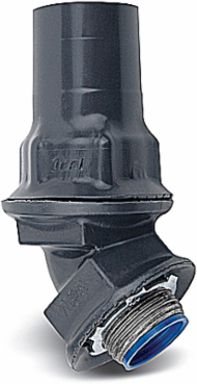

Ocal ST21/245-G Liquidtight Conduit Fitting - 45 Degree
- MPN: ST21/245-G
- UPC: 704508407131
- PPN: T-B-ST21/245-G
CAD
$1911.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PVC Coated Liquitight Conduit Connector, 45 Degree, Pipe Size 2-1/2 Inch/63 Metric, Minimum .040 Inch (40 mil) PVC Coating on Exterior, Steel Fitting, Dark Gray
Features
- A minimum of .040 inch (40 mil) PVC coating is bonded to the exterior.
- Double coated with a nominal .002 inch (2 mil) blue urethane on both the interior and exterior, before PVC coating is applied.
- Pressure-sealing sleeves are designed to protect the connection.
- PVC coated connectors are available in straight, 45 degree and 90 degree configurations
- Ocal uses T&B Industrial Liquidtight fittings to insure quality installations.
Specifications
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Nominal size in inch
- 2 1/2 inch
- Revolving thread
- N
- Material housing
- Steel
Nominal diameter63mm
Model45°-elbow
Construction typeExternal thread
Surface protectionOther
North American Specifications (UNSPSC)
- UNSPSC
- 39121420 Liquid tight connectors
- Brand Name
- Ocal
- Special Features
- Pressure-Sealing Sleeves Protect the Connection
- Size
- 2-1/2 Inch/63mm
- Material
- Steel
- Color
- Dark Gray
IGCC4585 Liquid tight connectors
TypeLiquidtight Conduit Fitting - 45 Degree
ApplicationTo Positively Bond Conduit to Box or Enclosure
Connection45 Degree
FinishPVC Coated
Environmental ConditionsHazardous Locations
Packaging
- Inner Dimensions (inches)
- xx
- Outer Dimensions (inches)
- 11.125x6.875x6.5
Outer Quantity4
Weight Uom5.8 lbs. Each
