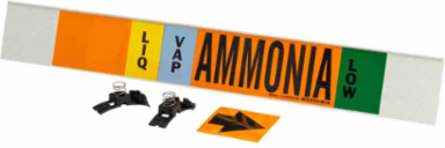

Brady 145940 LIQVAP AMMONIA LOW Pipe Marker, 4" H x 24" W, Fits Pipes 8" Dia. or Larger
- MPN: 145940
- UPC: 754473547288
- PPN: BRD-145940
- UNSPSC: 55121737
CAD
$78.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pipe markers comply with IIAR Bulletin 114, which modifies the color scheme from yellow to orange to meet ANSI's A13.1 (2007) revised standard.
Features
- IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation

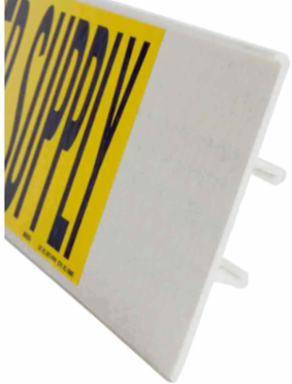

- Style HPHV (High Performance High Visibility) pipe markers are supplied on a fiberglass plastic carrier and are ideal for 8" and larger pipe diameters
- Designed for use on rusty, dirty, wet or rough surfaces and can be used indoors or outdoors on horizontal and vertical pipes
- Pipe marker includes directional arrows
Specifications
Key Specifications
| Applications | Pipe and Valve Marking |
|---|---|
| Cards or Sheets per Pack | 1 |
| Combined IIAR Legend | AMMONIA LIQ/VAP LOW |
| IIAR Legend | AMMONIA |
| IIAR Pressure Level | LOW |
| Pipe Marker Mounting Style | Fiberglass Carrier |
| Primary Noun, Basic Function | Pipe Marker |
| Indoor or Outdoor Use | Outdoor Use |
| Material | Polyester Overlaminate on Fiberglass Plastic Carrier |
| Resistance Properties | Abrasion-Resistant; Chemical-Resistant |
| Character Height (in/ft/yd) | 3.5 in |
| Dimensions | 4 in H x 24 in W |
| Dimensions 2 | 4 in H x 24 in W |
| Height (mm/cm/m) | 101.6 mm |
| Maximum Service Temperature °F | 230 °F |
| Minimum Outside Pipe Diameter (mm/cm/m) | 203.2 mm |
| Minimum Service Temperature °F | -40 °F |
| Roll/Tape Size (in/ft/yd) | 4 in H x 24 in W |
| Size | HPHV |
| Width (mm/cm/m) | 60.96 cm |
| Brand Name | Brady® |
|---|---|
| Color | Black/Blue/Green/Yellow on Orange |
| Enables Industry Compliance | IIAR Standard - Bulletin 114 |
| IIAR Phase | LIQ/VAP |
| Language | English |
| Pipe Marker Style | HPHV |
| Brady Material Number | B-681/B-883 |
| Laminated | Laminated |
| Material Properties | High Visibility; Rigid |
| SAP B-Number | B-681/B-883 |
| Character Height (mm/cm/m) | 88.9 mm |
| Dimensions (Metric) | 101.6 mm H |
| Height (in/ft/yd) | 4 in |
| Maximum Service Temperature °C | 110 °C |
| Minimum Outside Pipe Diameter (in/ft/yd) | 8 in |
| Minimum Service Temperature °C | -40 °C |
| Overall Size | Fits Pipes 8" Dia. or larger |
| Sign Size-General | 4 in x 24 in |
| Width (in/ft/yd) | 24 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | Unavailable |
| EU RoHS Compliant | Yes |
| Contains CA PROP 65 Substance | No |
|---|---|
| EU RoHS Compliance | Pass 2011/65/EU |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
