Weidmuller 9200150000 LIR 2,5M3 V
- MPN: 9200150000
- PPN: WDM-9200150000
CAD
$0.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

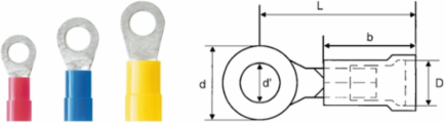

cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²
Documentation & Downloads
Specifications
Dimensions And Weights
- Width
- 20.6 mm
- Depth
- 6.2 mm
- Net weight
- 0.73 g
Width (inches)0.811 inch
Depth (inches)0.244 inch
Classifications
- ETIM 6.0
- EC001059
- eClass 9.0
- 27-40-02-92
- eClass 10.0
- 27-40-02-92
ETIM 7.0EC001059
eClass 9.127-40-02-12
UNSPSC23-17-16-04
Connectors
- Conductor cross-section, max.
- 2.5 mm²
- Connection density (S1)
- 0.8 mm
- Dimension (bolt)
- M 3
- Inside diameter (d1)
- 3.2 mm
- Material/plastic
- PVC
- Plastic collar diameter (D)
- 4.5 mm
Conductor cross-section, min.1.5 mm²
DimensionM 3
Identification colourblue
InsulationAvailable
Outside diameter (d)6.4 mm
Plastic collar length (b)11.3 mm
Approvals
- Approvals
- GOSTME25
ROHSConform
