Weidmuller 9200080000 LIR 1,5M3,5 V
- MPN: 9200080000
- PPN: WDM-9200080000
CAD
$0.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

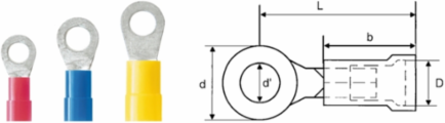

cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²
Documentation & Downloads
Specifications
Connectors
| Conductor cross-section, max. | 1.5 mm² |
|---|---|
| Connection density (S1) | 0.75 mm |
| Dimension | M 3.5 |
| Identification colour | red |
| Insulation | Available |
| Outside diameter (d) | 5.5 mm |
| Plastic collar length (b) | 11.3 mm |
| Conductor cross-section, min. | 0.5 mm² |
|---|---|
| Connection length (I) | 16.05 mm |
| Dimension (bolt) | M 3.5 |
| Inside diameter (d1) | 3.7 mm |
| Material/plastic | PVC |
| Plastic collar diameter (D) | 4 mm |
Dimensions And Weights
| Width | 20.4 mm |
|---|---|
| Depth | 5.8 mm |
| Net weight | 0.4 g |
| Width (inches) | 0.803 inch |
|---|---|
| Depth (inches) | 0.228 inch |
Approvals
| Approvals | GOSTME25 |
|---|
| ROHS | Conform |
|---|
Classifications
| ETIM 6.0 | EC001059 |
|---|---|
| eClass 9.0 | 27-40-02-92 |
| eClass 10.0 | 27-40-02-92 |
| ETIM 7.0 | EC001059 |
|---|---|
| eClass 9.1 | 27-40-02-12 |
| UNSPSC | 23-17-16-04 |
