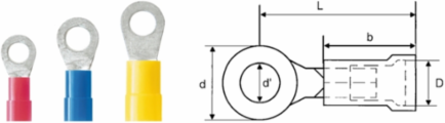

Weidmuller 9200110000 LIR 1,5M6 V
- MPN: 9200110000
- PPN: WDM-9200110000
CAD
$0.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²
Documentation & Downloads
Specifications
Connectors
- Conductor cross-section, max.
- 1.5 mm²
- Connection density (S1)
- 0.75 mm
- Dimension (bolt)
- M 6
- Inside diameter (d1)
- 6.4 mm
- Material/plastic
- PVC
- Plastic collar diameter (D)
- 4 mm
Conductor cross-section, min.0.5 mm²
DimensionM 6
Identification colourred
InsulationAvailable
Outside diameter (d)11.6 mm
Plastic collar length (b)11.3 mm
Classifications
- ETIM 6.0
- EC001059
- eClass 9.0
- 27-40-02-92
- eClass 10.0
- 27-40-02-92
ETIM 7.0EC001059
eClass 9.127-40-02-12
UNSPSC23-17-16-04
Dimensions And Weights
- Width
- 27.7 mm
- Depth
- 5.9 mm
- Net weight
- 1 g
Width (inches)1.091 inch
Depth (inches)0.232 inch
Approvals
- Approvals
- GOSTME25
ROHSConform
