Weidmuller 9200450000 LIS 6M10 V
- MPN: 9200450000
- PPN: WDM-9200450000
CAD
$1.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

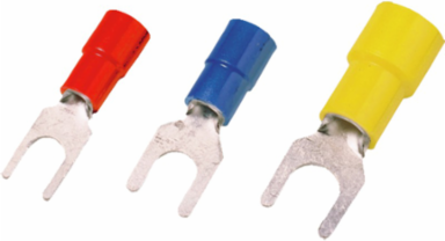

cable lug, terminal end,Insulated cable connector,4 mm² - 6 mm²,yellow
Documentation & Downloads
Specifications
Connectors
| Conductor cross-section, max. | 6 mm² |
|---|---|
| Connection density (S1) | 1 mm |
| Dimension (bolt) | M 10 |
| Inside diameter (d1) | 10.5 mm |
| Material/plastic | PVC |
| Plastic collar diameter (D) | 6.4 mm |
| Conductor cross-section, min. | 4 mm² |
|---|---|
| Dimension | M 10 |
| Identification colour | yellow |
| Insulation | Available |
| Outside diameter (d) | 18 mm |
| Plastic collar length (b) | 13.15 mm |
Approvals
| Approvals | GOSTME25 |
|---|
| ROHS | Conform |
|---|
Classifications
| ETIM 6.0 | EC001059 |
|---|---|
| eClass 9.0 | 27-40-02-92 |
| eClass 10.0 | 27-40-02-92 |
| ETIM 7.0 | EC001059 |
|---|---|
| eClass 9.1 | 27-40-02-12 |
| UNSPSC | 41-11-36-37 |
Dimensions And Weights
| Width | 36.7 mm |
|---|---|
| Depth | 8 mm |
| Net weight | 3.17 g |
| Width (inches) | 1.445 inch |
|---|---|
| Depth (inches) | 0.315 inch |
