Weidmuller 9200620000 LIF 2,5T638 R
- MPN: 9200620000
- PPN: WDM-9200620000
CAD
$0.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

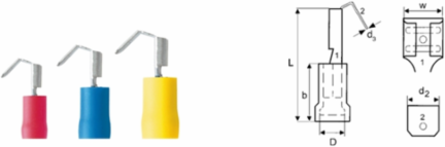

cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²,blue
Documentation & Downloads
Specifications
Connectors
| Conductor cross-section, max. | 2.5 mm² |
|---|---|
| Dimension | 6.3 x 0.8 mm |
| Identification colour | blue |
| Material/plastic | PVC |
| Plastic collar length (b) | 10 mm |
| Plug-in width (d2) | 6.3 mm |
| Conductor cross-section, min. | 1.5 mm² |
|---|---|
| Dimension (flat blade connector) | 6.3 x 0.8 mm |
| Insulation | Available |
| Plastic collar diameter (D) | 5.8 mm |
| Plug-in density (d3) | 0.8 mm |
Approvals
| Approvals | GOSTME25 |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 20.8 mm |
|---|---|
| Depth | 7.7 mm |
| Net weight | 1.32 g |
| Width (inches) | 0.819 inch |
|---|---|
| Depth (inches) | 0.303 inch |
Classifications
| ETIM 6.0 | EC000516 |
|---|---|
| eClass 9.0 | 27-44-03-92 |
| eClass 10.0 | 27-44-03-92 |
| ETIM 7.0 | EC000516 |
|---|---|
| eClass 9.1 | 27-40-02-90 |
| UNSPSC | 23-17-16-04 |
