Weidmuller 9200320000 LIS 1,5M5 V
- MPN: 9200320000
- PPN: WDM-9200320000
CAD
$0.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

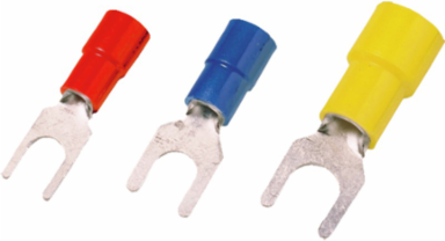

cable lug, terminal end,Insulated cable connector,0.5 mm² - 1.5 mm²,red
Documentation & Downloads
Specifications
Approvals
- Approvals
- GOSTME25
ROHSConform
Connectors
- Conductor cross-section, max.
- 1.5 mm²
- Connection density (S1)
- 0.75 mm
- Dimension
- M 5
- Identification colour
- red
- Insulation
- Available
- Outside diameter (d)
- 8.1 mm
- Plastic collar length (b)
- 11.3 mm
Conductor cross-section, min.0.5 mm²
Connection length (I)17.8 mm
Dimension (bolt)M 5
Inside diameter (d1)5.3 mm
Material/plasticPVC
Plastic collar diameter (D)4 mm
Classifications
- ETIM 6.0
- EC001059
- eClass 9.0
- 27-40-02-92
- eClass 10.0
- 27-40-02-92
ETIM 7.0EC001059
eClass 9.127-40-02-12
UNSPSC30-21-18-01
Dimensions And Weights
- Width
- 22.4 mm
- Depth
- 5.8 mm
- Net weight
- 0.71 g
Width (inches)0.882 inch
Depth (inches)0.228 inch
