Litestak Incandescent Light Module, UL and cUL, 120VAC, Amber
Federal Signal

Federal Signal LSL-120A Litestak Incandescent Light Module, UL and cUL, 120VAC, Amber

  • MPN: LSL-120A
  • UPC: 782979268055
  • PPN: FDS-LSL-120A
  • UNSPSC: 32151503

CAD

$223.16

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

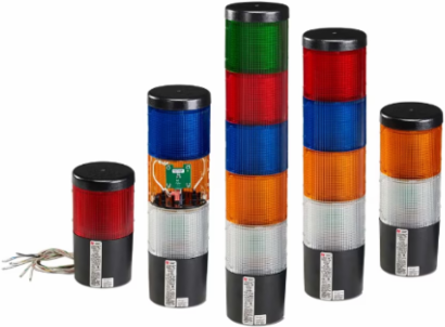

Federal Signal's Litestak® status indicator may include up to five light modules (Model LSL) available in Amber, Blue, Clear, Green, and Red; or four light modules plus an optional sound module (Model LSH) to create a dual purpose audible/visual status indicator. The sound module always occupies the top position of a Litestak unit.Litestak's lensing provides a 360° visual signal. Individual light modules may be set to either flash or steady. The flasher is included with the 120 Vac LSB model and sold separately for 24 Vdc. Each light module consists of two impact-resistant polycarbonate lens halves that snap apart to provide easy maintenance and interchangeability of colors.Litestak units can be installed on a 3/4-inch NPT pipe mount or surface mounted with the Model LSB Base. If low profile surface mounting is required, Model LSBS is available. All Litestak models should be mounted base down.Multiple lens colors can communicate machine shutdown, shortage of materials, supervisor attention, etc. Ideal applications for the Litestak include assembly lines, instrument panels, workcells, etc. Federal Signal's Litestak is an economical device for increasing productivity in any manufacturing environment.

Features

  • Available in 24 Vdc and 120 Vac
  • Five lens colors: Amber, Blue, Clear, Green and Red
  • Surface mount and integrated 3/4-inch NPT pipe mount
  • Indoor use only
  • Type 1 enclosure
  • Optional sounders available
  • CSA Certified
  • UL and cUL Listed

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Weight
0.5 lbs
Certification Listing
CSA, UL, cUL
Flash Pattern Type
Steady/Flashing
Lens Color
Amber
Mount Type
3/4-Inch Pipe, Surface
Operating Temp.
0˚ to +120˚F (-18˚ to +49˚C)
Visual Signals Operating Voltage
120VAC
Enclosure Rating
Type 1
Product Life Cycle Status
Completed
Height3.25 in
Body ColorBlack
Diameter3.93 in (99.822 mm)
AvailabilityShips in 10 Business Days
Lens StyleFresnel
Operating Current Amps0.13
Visual Signals Lens ColorAmber
Environmental RatingOrdinary Location
Lead TimeShips in 10 Business Days
