Federal Signal

Federal Signal LSL-024A Litestak Incandescent Light Module, UL and cUL, 24VDC, Amber

Litestak Incandescent Light Module, UL and cUL, 24VDC, Amber
  • MPN: LSL-024A
  • UPC: 782979268048
  • PPN: FDS-LSL-024A
  • UNSPSC: 32151503

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$223.16/ EA

Description

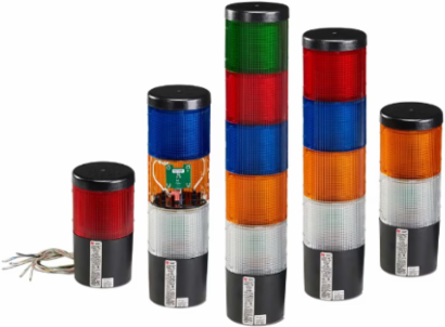

Federal Signal's Litestak® status indicator may include up to five light modules (Model LSL) available in Amber, Blue, Clear, Green and Red; or four light modules plus an optional sound module (Model LSH) to create a dual purpose audible/visual status indicator. The sound module always occupies the top position of a Litestak unit.Litestak's lensing provides a 360° visual signal. Individual light modules may be set to either flash or steady. The flasher is included with the 120VAC LSB model and sold separately for 24VDC. Each light module consists of two impact-resistant polycarbonate lens halves that snap apart to provide easy maintenance and interchangeability of colors.Litestak units can be installed on a 3/4-inch NPT pipe mount or surface mounted with the Model LSB Base. If low profile surface mounting is required, Model LSBS is available. All Litestak models should be mounted base down.Multiple lens colors can communicate machine shutdown, shortage of materials, supervisor attention, etc. Ideal applications for the Litestak include assembly lines, instrument panels, workcells, etc. Federal Signal's Litestak is an economical device for increasing productivity in any manufacturing environment.

Features

  • Available in 24VDC and 120VAC
  • Five lens colors: Amber, Blue, Clear, Green and Red
  • Surface mount and integrated 3/4-inch NPT pipe mount
  • Indoor use only
  • Type 1 enclosure
  • Optional sounders available
  • CSA Certified
  • UL and cUL Listed

Specifications

Specifications

Country of Origin
United States
Body Color
Black
Diameter (in)
3.93
Flash Pattern Type
Steady/Flashing
Lens Color
Amber
Mount Type
3/4-Inch Pipe, Surface
Operating Temp.
0˚ to +120˚F (-18˚ to +49˚C)
Visual Signals Lens Color
Amber
Depth
3.25 in, 8.255 cm
Diameter
3.93 in, 9.9822 cm
Weight0.5 lbs
Certification ListingCSA, UL, cUL
Diameter (mm)99.822
AvailabilityIn Stock - Ships in 2 Bus Days
Lens StyleFresnel
Operating Current Amps0.76
Operating Voltage24 Vdc
Visual Signals Operating Voltage24VDC
Height3.25 in, 8.255 cm
