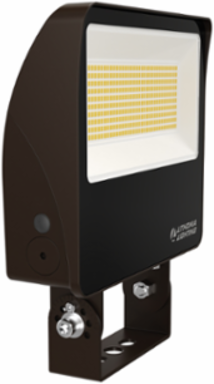

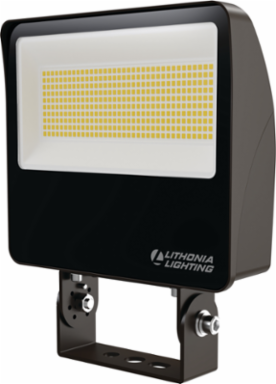

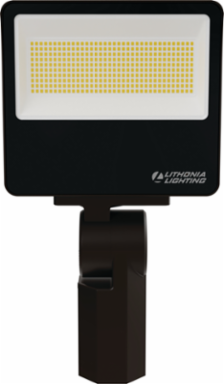

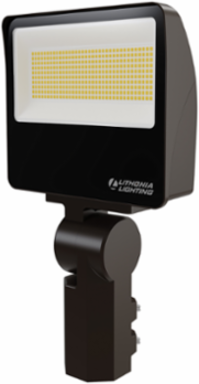

Lithonia Lighting ESXF3 ALO SWW2 UVOLT YS DDB M2 LED Floodlight 100W 9.75 x 6.75 x 1.8 Inch 10,000-14,500 Lumens
- MPN: ESXF3 ALO SWW2 UVOLT YS DDB M2
- UPC: 196182393273
- PPN: LTH-ESXF3 ALO SWW2 UVOLT YS DDB M2
- UNSPSC: 39111611
CAD
$360.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Design Select
Features
- DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell
- ENERGY SAVINGS: Energy-efficient LEDs with lumen output of 8500, 10500, and 14000 lumens

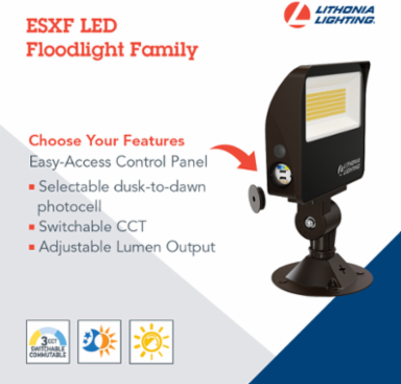

- SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell
- RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
- VOLTAGE: UVOLT (120-347V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%
- INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources

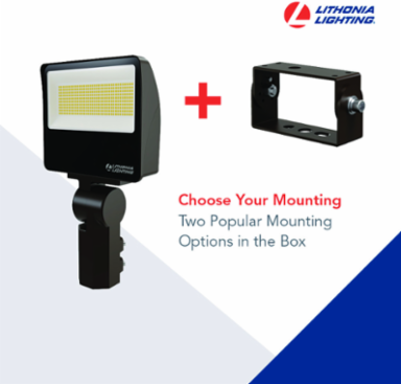

- INSTALLATION: Include a yoke mount for solid surface mounting and an integral slipfitter that mates with standard 2 3/8" tenons for pole-top mounting, models ship standard with 18” SO cord
- CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
- WARRANTY: Five-year limited warranty

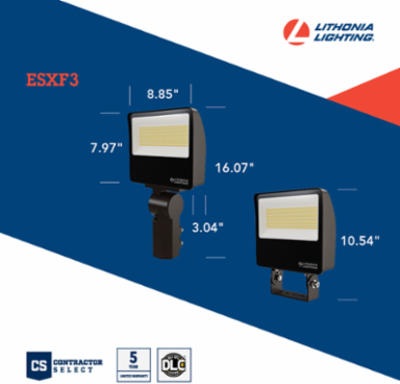

- DIMENSIONS: 7.97 in. x 8.95 in. x 3.04 in.

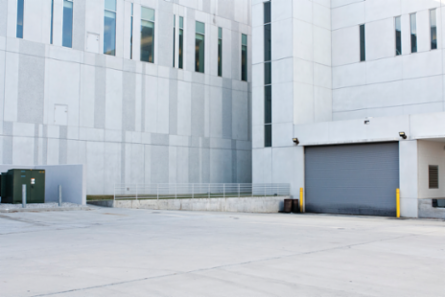

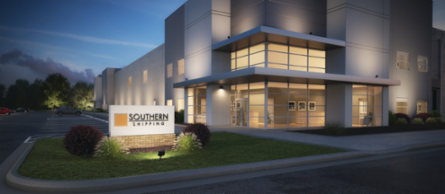

- Ideal for parking areas, street lighting, walkways and car lots
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Vietnam
- Color
- Bronze
- Shape
- Rectangular
- Environmental Conditions
- Outdoor
- Color Rendering Index (CRI)
- 80
- Color Temperature
- Variable K
- Power Rating
- 100
- Type
- Floodlight
Voltage Rating120-347 V
Lamp TypeLED - Static
MountingTenon Slipfitter, Yoke
Wattage100 W
Average Life50, 000 Hours
Lumens10, 000 LM, 10, 500 LM, 13, 600 LM, 14, 000 LM, 14, 500 LM, 8000 LM, 8500 LM LM
Size9.75 x 6.75 x 1.8 IN
