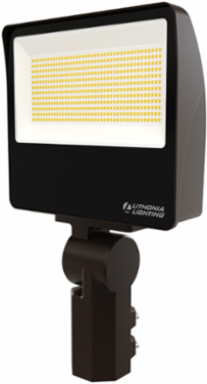

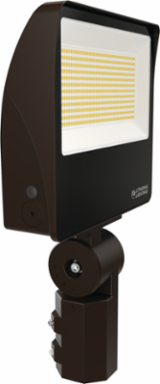

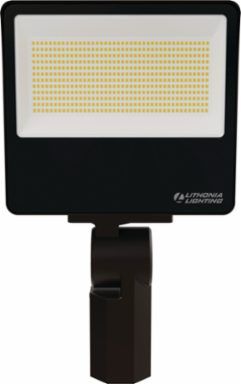

Acuity Brands ESXF4 ALO SWW2 UVOLT YS DDB M2 Floodlight 150W 17.66 x 10.54 x 3.12 Inch

Floodlight 150W 17.66 x 10.54 x 3.12 Inch
Floodlight 150W 17.66 x 10.54 x 3.12 Inch
Floodlight 150W 17.66 x 10.54 x 3.12 Inch
Floodlight 150W 17.66 x 10.54 x 3.12 Inch
Floodlight 150W 17.66 x 10.54 x 3.12 Inch
Floodlight 150W 17.66 x 10.54 x 3.12 Inch
Floodlight 150W 17.66 x 10.54 x 3.12 Inch
Floodlight 150W 17.66 x 10.54 x 3.12 Inch
Floodlight 150W 17.66 x 10.54 x 3.12 Inch
Floodlight 150W 17.66 x 10.54 x 3.12 Inch
Floodlight 150W 17.66 x 10.54 x 3.12 Inch
Floodlight 150W 17.66 x 10.54 x 3.12 Inch
  • MPN: ESXF4 ALO SWW2 UVOLT YS DDB M2
  • UPC: 196182393297
  • PPN: LTH-ESXF4 ALO SWW2 UVOLT YS DDB M2
  • UNSPSC: 39111611

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$409.84/ EA

Description

Design Select

Features

  • DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell
  • ENERGY SAVINGS: Energy-efficient LEDs with lumen output of 16000, 18000, and 20000 lumens
  • SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell
  • RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
  • VOLTAGE: UVOLT (120-347V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%
  • INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources

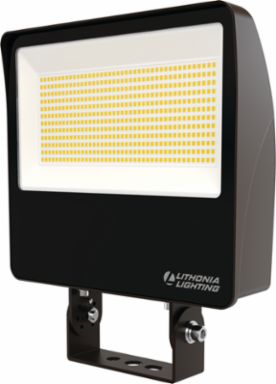

  • INSTALLATION: Include a yoke mount for solid surface mounting and an integral slipfitter that mates with standard 2 3/8" tenons for pole-top mounting, models ship standard with 18” SO cord
  • CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
  • WARRANTY: Five-year limited warranty

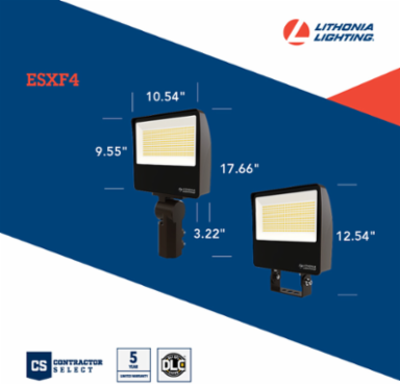

  • DIMENSIONS: 9.55 in. x 10.54 in. x 3.22 in.
  • Ideal for parking areas, street lighting, walkways and car lots

Specifications

Specifications

Country of Origin
Vietnam
Color
Bronze
Shape
Rectangular
Environmental Conditions
Outdoor
Color Rendering Index (CRI)
80
Color Temperature
Variable K
Power Rating
150
Type
Floodlight
Voltage Rating120-347 V
Lamp TypeLED - Static
MountingTenon Slipfitter, Yoke
Wattage150 W
Average Life50, 000 Hours
Lumens15, 500 LM, 16, 000 LM, 16, 500 LM, 17, 000 LM, 18, 000 LM, 19, 000 LM, 19, 500 LM, 20, 000 LM, 20, 500 LM LM
Size17.66 x 10.54 x 3.12 IN
