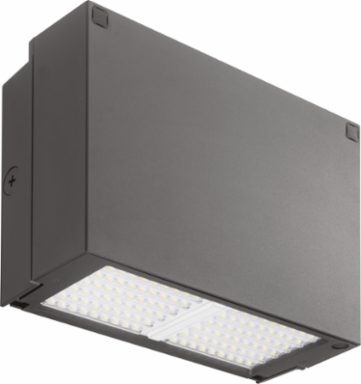

Lithonia Lighting WPX3 LED 50K MVOLT DDBXD M2 LED Wall Pack, 9.5x13x5.5 Inch, 9,200 Lumen Output
- MPN: WPX3 LED 50K MVOLT DDBXD M2
- UPC: 193048870824
- PPN: LTH-WPX3 LED 50K MVOLT DDBXD M2
- UNSPSC: 39111503
CAD
$402.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
LED Wall Pack, 9.5x13x5.5 Inch, 9,200 Lumen Output
Features
- The WPX LED wall packs are energy-efficient, cost effective, and aesthetically appealing solutions for both HID wall pack replacement and new construction opportunities
- 9,200 lumen output and 69W
- Hardwired on/off capability only
- CSA certified to meet US and Canadian standards, suitable for wet locations, IP66 Rated and DesignLights Consortium® (DLC) Premium qualified product
- MVOLT driver operates on any line voltage from 120-277V (50/60Hz) and can be mounted directly over a standard electrical junction box, or using conduit ports on the sides or back where wiring can be made in the integral wiring compartment in all cases
- Light engine(s) configurations consist of high-efficacy LEDs and LED lumen maintenance is L90/100,000 hours
- Die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life and the luminaires are IP66 rated and sealed against moisture and environmental contaminants
- Geometric shape covers the footprint of a typical HID wall pack, covering any unsightly stains.
- Five-year limited warranty
- 13.0 in x 9.5 in x 5.5 in
- The WPX family of LED wall packs are your best choice for your everyday wall mounted lighting needs
- No longer will your customers have to sacrifice performance and style to get the low initial cost that they demand
- With three sizes and lumen packages of 1,550 to 9,200 lumens, the WPX family is a site-wide solution, replacing up to 400W metal halide wall packs
- Since the WPX footprints are larger than that of typical metal halide glass wall packs, they fully cover unsightly stains, resulting in a neat application without the need for additional patch and repair
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Color
- Bronze
- Environmental Conditions
- Outdoor
- Fixture Finish
- Gloss
- Size
- 9.5x13x5.5
- Type
- Wallpack
Voltage Rating120-277 V
Lamp TypeLED - Static
StyleTraditional
Fixture MaterialAluminum
Socket TypeIntegrated LED
