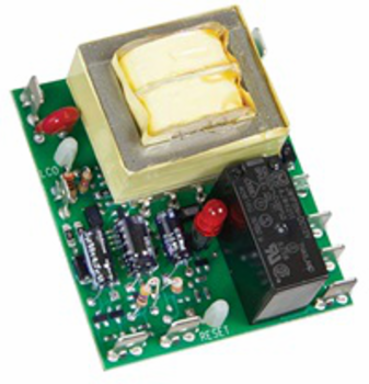

Littelfuse LLC842F103M LLC842F103M - LLC8 Series
- MPN: LLC842F103M
- UPC: 079458996470
- PPN: LTF-LLC842F103M
CAD
$153.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
See datasheet for operation and reset details.
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage (V)
- 120VAC
- Input AC Line Frequency (Hz)
- 50/60Hz
- Output Form
- Isolated SPDT
- Time Delay Range
- 2s fixed
- Reset Time (ms)
- Manual / automatic reset
- Setpoint vs Ambient Temperature and Operating Voltage (%)
- ±10%
- Sense Resistance (Ohms)
- 103 kΩ
- Control Type
- Resistance sensing for conductive liquids with time delay
- Surge Protection
- IEEE C62.41-1991 Level A
- Termination Type
- Electrical: 0.25 in. (6.35mm) male quick connect terminals; Reset switch and probes: 0.187 x 0.03 in (4.75 x 0.76 mm) male quick connect terminals
- Operating Temperature
- -40° to 60°C (-40°F to 140°F)
- Humidity
- 95% relative non-condensing
Input Tolerance (%)-0.3
Output TypeElectromechanical relay
Output Load Rating (VA)10A resistive @ 240VAC; 1/4hp @ 125VAC; 1/2hp @ 250VAC
Time Delay Tolerance (%)±20%
Repeat Accuracy (%)±10%
Sense Voltage12VAC at probe terminals
Sense Resistance Tolerance±10%
Isolation Voltage (V)≥2500V RMS between input and output terminals
CircuitryPrinted circuit board is conformal coated to resist moisture and corrosion
Mounting Method0.50 in. (12.7mm) nylon standoffs with three #6 (M3.5 x 0.6) screws
Storage Temperature (F/C)-40° to 80°C (-40°F to 176°F)
Weight (lbs/g)≅5.0oz (141.7g)
