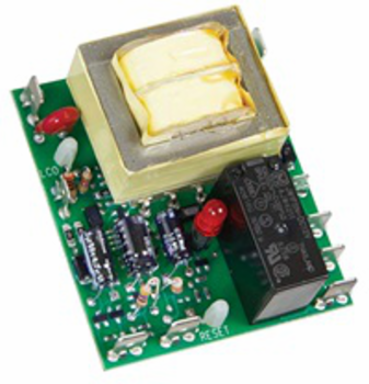

Littelfuse LLC843F26P LLC843F26P - LLC8 Series

MPN: LLC843F26P
UPC: 079458996531
PPN: LTF-LLC843F26P

$153.16

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

See datasheet for operation and reset details.

Documentation & Downloads

Specifications

Key Specifications

Input Voltage (V)	120VAC
Input AC Line Frequency (Hz)	50/60Hz
Output Form	Isolated SPDT
Time Delay Range	3s fixed
Reset Time (ms)	Power outage manual reset delay ≤1s
Setpoint vs Ambient Temperature and Operating Voltage (%)	±10%
Sense Resistance (Ohms)	26 kΩ
Control Type	Resistance sensing for conductive liquids with time delay
Surge Protection	IEEE C62.41-1991 Level A
Termination Type	Electrical: 0.25 in. (6.35mm) male quick connect terminals; Reset switch and probes: 0.187 x 0.03 in (4.75 x 0.76 mm) male quick connect terminals
Operating Temperature	-40° to 60°C (-40°F to 140°F)
Humidity	95% relative non-condensing

Input Tolerance (%)	-0.3
Output Type	Electromechanical relay
Output Load Rating (VA)	10A resistive @ 240VAC; 1/4hp @ 125VAC; 1/2hp @ 250VAC
Time Delay Tolerance (%)	±20%
Repeat Accuracy (%)	±10%
Sense Voltage	12VAC at probe terminals
Sense Resistance Tolerance	±10%
Isolation Voltage (V)	≥2500V RMS between input and output terminals
Circuitry	Printed circuit board is conformal coated to resist moisture and corrosion
Mounting Method	0.50 in. (12.7mm) nylon standoffs with three #6 (M3.5 x 0.6) screws
Storage Temperature (F/C)	-40° to 80°C (-40°F to 176°F)
Weight (lbs/g)	≅5.0oz (141.7g)
